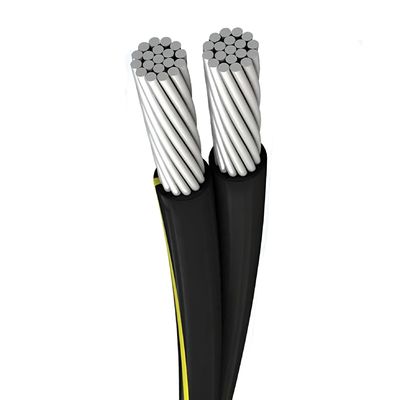

ABC Aerial Bundled Cable 2 Cores Low Voltage XLPE Insulation Black Color

Large Image : ABC Aerial Bundled Cable 2 Cores Low Voltage XLPE Insulation Black Color

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CE,ISO,TUV,VDE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/WEEK

Contact Now

ABC Aerial Bundled Cable 2 Cores Low Voltage XLPE Insulation Black Color

Description

Conductor:	Aluminum	Insulation:	Xlpe
Type:	2x16 2x25 2x35 2x50 2x70 2x95	Rated Voltage:	0.6/1KV
Working Temperature:	90°C, 70°C	Color:	Black
Highlight:	ABC Aerial Bundled Cable 2 Cores , XLPE Insulation ABC Aerial Bundled Cable , 2 Core ABC Cable

ABC Aerial Bundled Cable 2 Cores Low Voltage XLPE Insulation

Applications

Aerial Bundled Cable (ABC) is widely used in overhead low-voltage power distribution (typically up to 1kV). Its key applications include:

Rural & urban power lines – Replaces bare conductors for improved safety and reliability.

Storm-prone areas – Resists wind, rain, and environmental damage better than traditional wiring.

Crowded or narrow spaces – Compact bundled design minimizes installation space.

Long-span installations – Lightweight aluminum reduces sagging.

Construction

Conductor:Aluminium

Insulation:XLPE

Strandard

BS 7870-5:1999

Parameter

Number of Cores x Nominal Cross Section	Max. Conductor- Resistance	Min. Breaking Load of Conductor Strand	Current Rating in the air	Outer Diameter	Total weight
mm^2	Ω/km	kN	A	mm	kg/km
1x 16 RM	1910	2,5	72	80	74
1x 25 RM	1200	4,0	107	90	106
1x 35 RM	0,868	5,5	132	105	138
1x 50 RM	0,641	8,0	165	118	182
1x 70 RM	0,443	10,7	205	130	252
1x 95 RM	0,320	13,7	240	154	333
1x 120 RM	0,253	18,6	290	170	408
1x 150 RM	0,206	23,2	334	190	502
1x 185 RM	0,164	28,7	389	210	611
1x 240 RM	0,125	37,2	467	240	801
2x 16 RM	1910	2,5	72	156	147
2x 25 RM	1200	4,0	107	180	208
2x 35 RM	0,868	5,5	132	200	277
2x 50 RM	0,641	8,0	165	235	361
2x 70 RM	0,443	10,7	205	254	505
2x 95 RM	0,320	13,7	240	303	666
2x 150 RM	0,206	23,2	334	380	1004
