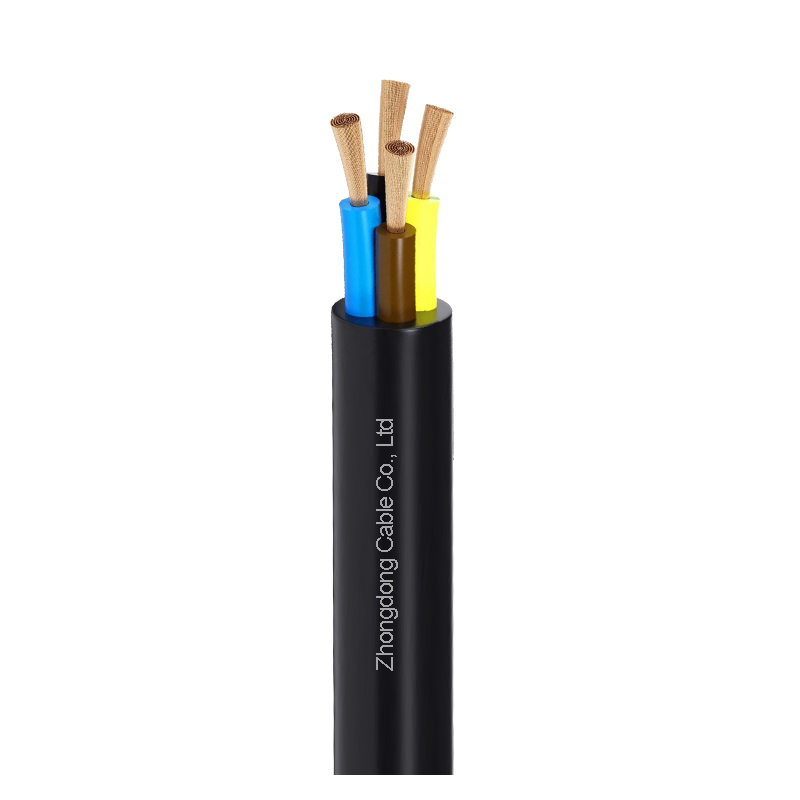

Copper Conductor PVC Insulation Electrical Wire House Wire H05VV-F H05V2V2-F‌

Copper Conductor PVC Insulation Electrical Wire House Wire H05VV-F H05V2V2-F‌

APPLICATION

This product is suitable for electrical appliances, instruments, and power lighting applications with AC rated voltages of 300/500V or below

CONSTRUCTION

• Conductor: Class 5 soft copper conductor
• Insulation:Polyvinyl chloride (PVC)
• Filler:Polypropylene mesh tear rope or flame-retardant filling
• Outer sheath: Polyvinyl chloride (PVC)

STANDARD

GB/T5023.5-2008

JB/T8734.3-2016

GB/T19666-2019

FEATURE

• Voltage Rating: 450/750V or 300/500V
• Temperature Rating
• Maximum operating temperature of conductor:+70℃
• Operating ambient temperature: -15℃~+45℃
• Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
• Minimum Bending Radius
• 6D (D is the actual outer diameter of the cable)

PARAMETERS

FACTORY

APPLICATION

FAQ

1. What is the voltage rating of H05VV-F/H05V2V2-F cables?

Both types are rated at 300/500V for AC systems (max 550V) and 413/825V for DC systems, complying with HD21.5/IEC 60227-5 standards.

2. What does "H05V2V2-F" stand for?

• H: Harmonized European standard

• 05: 300/500V voltage grade

• V2V2: PVC insulation + PVC sheath (enhanced mechanical protection)

• F: Flexible stranded conductors.

3. Are these cables suitable for outdoor use?

No. They are designed for indoor fixed installations or occasional movement in dry/damp environments (e.g., household appliances). Outdoor/industrial use requires specialized variants like H07RN-F.

4. What temperature ranges do they support?

• Fixed installation: -40°C to +80°C (H05V2V2-F withstands up to +90°C)

• Mobile use: -5°C to +70°C.

5. How do H05VV-F and H05V2V2-F differ?

• H05VV-F: Standard PVC sheath for general purposes (e.g., vacuums, washing machines).

• H05V2V2-F: Thicker sheath with better oil/chemical resistance, ideal for industrial machinery.

6. What certifications do they carry?

Both are CE, VDE, and RoHS compliant, with some manufacturers offering TUV/UL dual certification.

7. What conductor types are used?

Class 5/6 stranded bare or tinned copper per IEC 60228 (0.10–0.30mm strands for flexibility).

8. Can they be used in high-flex applications?

Limited. For frequent bending (e.g., robotics), choose PUR-sheathed cables like H05VV5-F.

9. What are the bending radius requirements?

• Fixed: 4× cable diameter

• Mobile: 7–15× diameter (varies by model).
