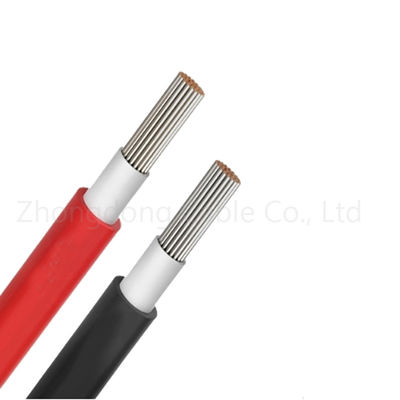

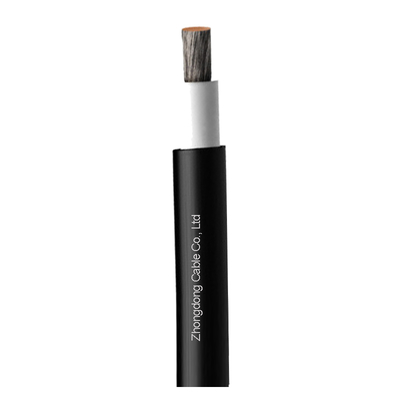

0.6/1.0KV Low Voltage Cable Solar Cable  XLPO Sheath Sustainable Energy PV1-F

Applications

• Solar Photovoltaic (PV) Systems – Connects solar panels to inverters (DC side).
• Renewable Energy Installations – Wind turbines, battery storage systems.
• Outdoor Wiring – Suitable for exposed or buried (with conduit) installations.
• Industrial & Agricultural Use – Flexible routing in harsh environments.

Structure

• Conductor: Tinned copper (single-core, Class 5 flexible stranded wire).
• Insulation: PVC (Polyvinyl Chloride) – Provides electrical insulation and mechanical protection.
• Voltage Rating: Typically 450/750V (for low-voltage applications).
• Flexibility: Highly flexible due to fine-stranded conductors, suitable for dynamic applications.
• Standards: Complies with EN 50618 (EU), IEC 62930, and TÜV certifications (for solar applications).

Features

• UV & Weather Resistant – Designed for outdoor use.
• Halogen-Free Options (PV1-F-0) – Available for enhanced safety (low smoke, no toxic fumes).
• Temperature Range: -40°C to +90°C (short-term up to +120°C).

Parameters

FACTORY

PROJECT

PARTNER

FAQ

Q. What is low-voltage photovoltaic cable?‌
A. It's a specialized cable designed for DC-side circuits in solar power systems, typically operating below 1.5kV DC, with UV-resistant and weatherproof properties4.

Q‌.What are the key features of PV cables?‌
A. Temperature resistance (-40°C to 120°C),  UV/ozone protection,  Halogen-free flame retardancy,  Cross-linked polyethylene (XLPE) insulation

Q‌.Can regular cables replace PV cables?‌
A. No. Standard cables lack UV/weather resistance and may degrade rapidly in outdoor solar installations

Q.How to choose PV cable size?‌
A. Consider: Current rating (e.g., 4mm² for 30A), Voltage drop (<3% recommended), Ambient temperature

Q‌. What's the lifespan of PV cables?‌
A. Typically 25+ years when using certified products with proper installation

Q‌. Are PV cables fire-resistant?‌
A. Yes, premium PV cables use halogen-free materials to prevent toxic fumes during fires

Q‌.Can PV cables be buried directly?‌
A.Only if specifically rated as "direct burial" type; otherwise, use conduits
