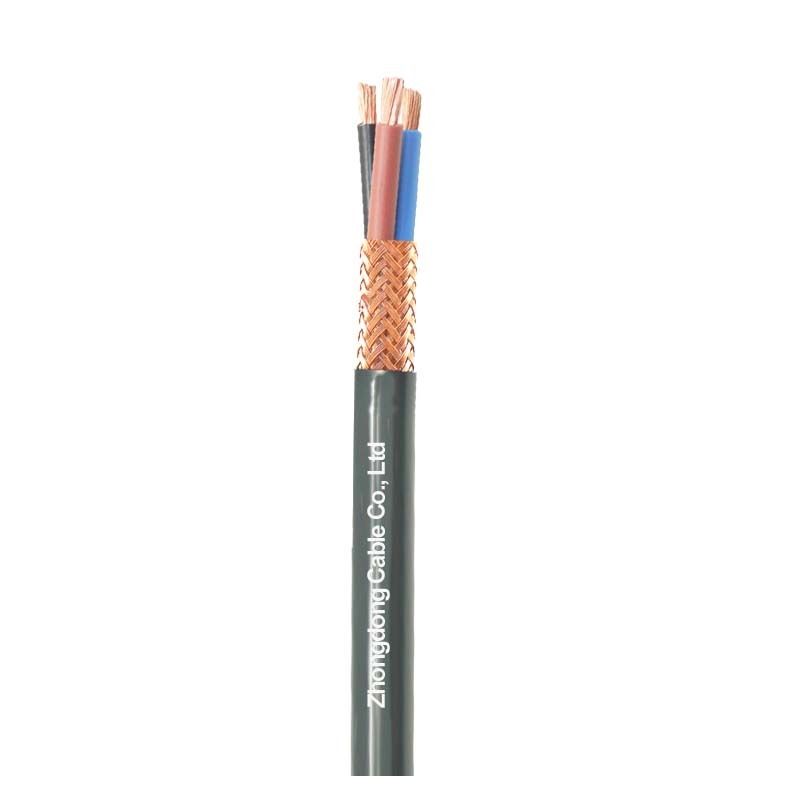

Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY

Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY
Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY
Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY

Large Image :  Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO,VDE,ISO,TUV
Model Number: KVVP NYCY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Steel Drums
Delivery Time: 10Work days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY

Description
Conductor Material: Copper Insulation Material: PVC
Application: Industrial Jacket: PVC
Color: Optional Cores: 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Highlight:

Flame-retardant flexible control cable

,

Screened Flexible control cable

,

Copper Flexible control cable

Flexible Control Cable Copper Wire Screened Flame-retardant  Braided Shielded H07VV  H07VVCY

APPLICATION

  • ‌Signal Transmission‌

  • ‌Mobile Equipment Wiring‌

  • ‌CNC Machines/Industrial Robots‌

  • ‌Cranes/Electric Hoists‌

  • ‌Power Plants/Substations

  • ‌Distribution Systems

    ‌


CONSTRUCTION

 Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)

Insulation:Polyvinyl chloride (PVC)

Filler:Polypropylene mesh tear rope or flame-retardant filling

Braiding:Soft round copper wire or tin plated round copper wire

Outer sheath:Polyvinyl chloride (PVC)


Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY 0


Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY 1


Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY 2

CHARACTERISTIC

Voltage Rating Uo/U: 450/750V

Temperature Rating

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -15℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: 6D (D is the actual outer diameter of the cable)


STANDARD



GB/T9330.2-2008


Specification

No of core: 2-61 core

Nominal cross-section of conductor: 0.5-10mm2


TYPE



Type

Name

Applying bound

KVV

Copper conductor PVC insulated and sheathed control cable

For laying indoors, in trenches, and in ducts for the fixed installation

KVVP

Copper conductor PVC insulated & sheathed copper wire braiding screened control cable


For laying indoors, in trenches, and in ducts for the fixed installation

KVVP2

Copper conductor PVC insulated and sheathed control cable with steel tape shied

For laying indoors, in trenches, and in ducts for the fixed installation

KVV22

Copper conductor PVC insulated and sheathed control cable with steel tape armoured

For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation

KVVR

Copper conductor PVC insulated flexible control cable

For laying indoors, movable and flexible

ZR-KVVP

Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable

Fixed laying indoors with capability of moving and screening

ZR-KVV

Copper conductor PVC insulated and sheathed flame retardant control cable

For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance

ZR-KVVP2

Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield

For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance

ZR-KVV22

Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured

For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear beavier extermal mechanical force and for fixed installation

ZR-KVVR

Copper conductor PVC insulated and sheathed flame retardant flexible control cable

For laying indoors, and the cable should be flame-retardant flexible and movable



OUR FACTORY


Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY 3




APPLICATION


Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY 4Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY 5

Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY 6Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY 7


FAQ


Q1.Are you a factory or trading company?

A1: We are a manufacturer.

Q2:How to get a free sample?
A2.Ofcourse,we could provide free samples and you charge the shipping cost
Q3. How long delivery time?
A3.It usualy take 7-10days for sample order and 25-30days for big order.
Q4.What is your payment term?
A4.Ourpaymenterm is usualy T/T30% in advanced,the balance before picking up the goods

Q5. Why should you buy from us instead of other suppliers?
We strictly comply with the international standards in our porduction process.
