Multi Core Cu Conductor Low Voltage Cable Steel Wire Armour LV Power Cable

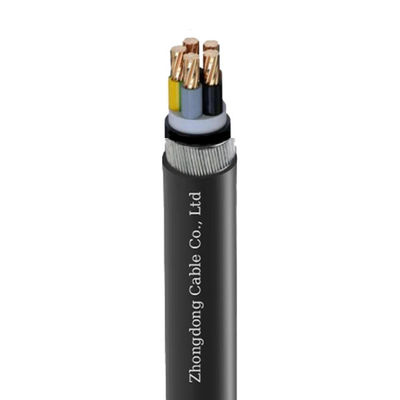

Large Image : Multi Core Cu Conductor Low Voltage Cable Steel Wire Armour LV Power Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001/CCC
Model Number:	1.5-400mm2

Payment & Shipping Terms:

Minimum Order Quantity:	100m
Price:	Negotiable
Packaging Details:	wooden drum /steel wooden drum /coil
Delivery Time:	7-15 working days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Multi Core Cu Conductor Low Voltage Cable Steel Wire Armour LV Power Cable

Description

Insulation Material:	XLPE	Type:	LOW VOLTAGE
Product Name:	Multi Core XLPE Armored Power Cable	Armour:	SWA
Sample:	Contact To Get Free Sample	Other Core:	2 Core, 3 Core, 4 Core, 5 Core
Rated Voltage:	0.6 KV	Working Temperature:	90°C
Standard:	BS 6724
Highlight:	Multi Core LV Power Cable , Cu Conductor Low Voltage Cable , Steel Wire Armour LV Power Cable

0.6/1kV Cu Conductor XLPE Insulation Low Voltage Cable Steel Wire Armour power cable

APPLICATION

Excellent electrical performance,High mechanical strength, and Strong corrosion resistance.Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

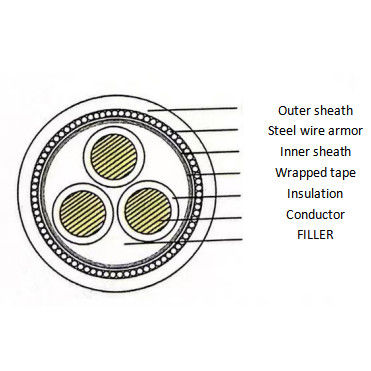

DESIGN & CONSTRUCTION

CONDUCTOR:Circular, solid, compacted or sector shaped stranded Copper or aluminu
Insulation: XLPE
Filler:Non-hygroscopic material
Inner sheath:PVC
Armour:Steel Wire Armoured
Binder type:Non-hygroscopic material
OUTER Sheath:PVC

STANDARDS

GB/12706.1, IEC60502-1, BS 6724, BS 7870-5,BS 5467, NFC 32-321, HD 603 S1 , AS/NZS 5000.1,AS/NZS 3599.1,AS/NZS 3599.2,IS 1554 , IS 7098 and ICEA S-66-524 etc.

CHARACTERISTICS

1.Test Voltage: 3.5kV 5min No Breakdown
The ambient temperature for installation: ≥0℃.
Maximum conductor temperature in normal operation:≤90℃.
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable

SPECIFICATIONS

Product type

General type	VDE type	Description	Application
CU/XLPE/PVC (AL/ XLPE /PVC)	N2XY(NA2XY)	Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.
CU/PVC/PE (AL/ XLPE /PE)	N2X2Y(NA2X2Y)	Cu conductor(Al conductor)XLPE insulated PE sheathed power cable
CU/ XLPE /STA/PVC (AL/XLPE/STA/PVC)	N2XBY(NA2XBY)	Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
CU/XLPE/STA/PE (AL/XLPE/STA/PE)	N2XB2Y(NA2XB2Y)	Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC)	N2XBY(NA2XBY)	Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PVC sheathed power cable
CU/XLPE/ATA/PE (AL/XLPE/ATA/PE)	N2XB2Y(NA2XB2Y)	Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PE sheathed power cable
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC)	N2XRY(NA2XRY)	Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force
CU/XLPE/SWA/PE (AL/PVC/SWA/PE)	N2XR2Y(NA2XR2Y)	Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC)	N2XRY(NA2XRY)	Cu conductor(Al conductor)XLPE insulated aluminum-wire armored PVC sheathed power cable
CU/XLPE/AWA/PE (AL/XLPE/AWA/PE)	N2XR2Y(NA2XR2Y)	Cu conductor(Al conductor)XLPE insulated aluminum-wire armored PE sheathed power cable
