KVV KVVP Multicore Control Cable 450V 750V 1.5mm 2.5mm PVC Sheathed

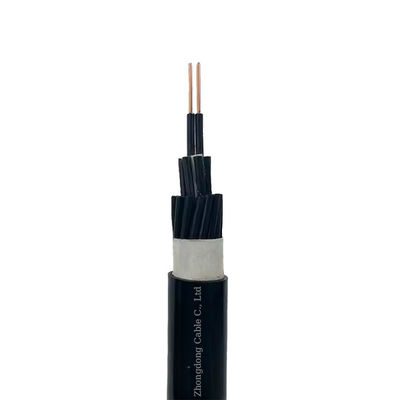

Large Image : KVV KVVP Multicore Control Cable 450V 750V 1.5mm 2.5mm PVC Sheathed

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,ISO,CE,TUV
Model Number:	KVV,KVVP

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Steel wooden drum
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

KVV KVVP Multicore Control Cable 450V 750V 1.5mm 2.5mm PVC Sheathed

Description

Model Number:	Control Cable	Conductor Material:	Copper
Nsulation Material:	PVC	Voltage Rating:	300/500 V
Insulation Material:	PVC	Cores No.:	2 To 61
Highlight:	PVC Sheathed Multicore Control Cable , KVVP Multicore Control Cable 750V

KVV KVVP Multi Cores Control Cable 450/750V 1.5mm 2.5mm Retardant PVC Sheathed

Application

Industrial Automation,Machinery and Equipment,Building Automation,Transportation,Energy and Utilities,Telecommunications,Medical Equipment

Specification

KVV:450/750V,Copper core PVC insulated PVC sheathed electric control cable

KVV22:450/750V,Copper core PVC insulated PVC sheathed armoured electric control cable

KVVR:450/750V,Copper core PVC insulated PVC sheathed flexible electric control cable

KVV Control Cable
Nominal Section (m㎡)	Insulation Nominal Thickness (mm)	Sheath Nominal Thickness (mm)	Maximum DC Resistance Value at 20 ℃ (Ω/KM)	Approximate Outer Diameter (mm)	Cable Approx Weight (KG/KM)
2*0.75	0.6	1.2	24.5	7.3	63.4
3*0.75	0.6	1.2	24.5	7.7	72.7
5*0.75	0.6	1.2	24.5	8.9	104.7
7*0.75	0.6	1.2	24.5	9.5	129.5
2*1.0	0.6	1.2	18.1	7.7	71.0
3*1.0	0.6	1.2	18.1	8.0	83.3
5*1.0	0.6	1.2	18.1	9.3	121.6
7*1.0	0.6	1.2	18.1	10.0	152.3
2*1.5	0.7	1.2	12.1	8.6	89.3
10*1.5	0.7	1.5	12.1	14.7	303.9
16*1.5	0.7	1.5	12.1	16.7	444.8
24*1.5	0.7	1.7	12.1	20.7	653.8
37*1.5	0.7	1.7	12.1	23.5	946.6
4*2.5	0.8	1.2	7.41	11.2	200.0
30*2.5	0.8	1.7	7.41	25.7	1175.3
5*4	0.8	1.5	4.61	14.0	343.0
12*4	0.8	1.7	4.61	20.0	719.5
8*6	0.8	1.5	3.08	18.0	663.7
14*6	0.8	1.7	3.08	23.1	1131.9
5*10	1.0	1.5	1.83	19.9	722.9
10*10	1.0	1.7	1.83	28.2	1378.1
