Copper Conductor Pre Branch Cable Single Core XLPE Insulated PVC Sheathed

Large Image : Copper Conductor Pre Branch Cable Single Core XLPE Insulated PVC Sheathed

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,TUV,ISO,CCC
Model Number:	YDF

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	woodern drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100km/week

Contact Now

Copper Conductor Pre Branch Cable Single Core XLPE Insulated PVC Sheathed

Description

Insulation Colour:	Natural	Sheath Colour:	Black
Voltage Rating:	0.6/1kV	Operating Voltage:	90˚C
Insulated:	XLPE	Sheathed:	PVC
Highlight:	Copper Conductor Pre Branch Cable , PVC Sheathed Pre Branch Cable

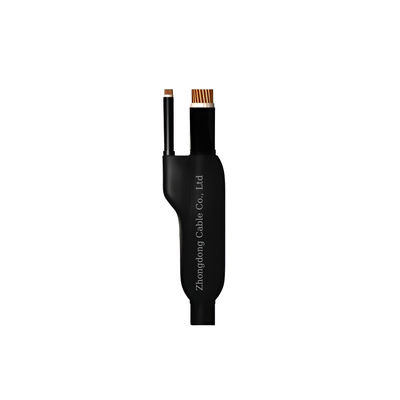

Copper Conductor pre-branch cable Single-Core XLPE Insulated PVC Sheathed

Application

The branch lines of the cable are pre-manufactured on the main cable, which greatly shortens the construction period and significantly reduces the material and construction costs; the pre-branched cable has the characteristics of high cost performance; the product is suitable for fixed laying in the indoor vertical shaft cable tray with a rated AC voltage of 0.6/1kV for power transmission and distribution lines.

Construction

Plain annealed copper, XLPE insulated, unarmoured, PVC compound sheathed cable

Type & Name

Type	Name
YDF-YJV	Copper Conductor XLPE insulated PVC sheathed prefab branch cable
YDF-VV	Copper Conductor PVC insulated PVC sheathed prefab branch cable
YDF-ZR-YJV	Copper Conductor XLPE insulated PVC sheathed flame resistance prefab branch cable
YDF-ZR-VV	Copper Conductor PVC insulated PVC sheathed flame resistance prefab branch cable
YDF-NH-YJV	Copper Conductor XLPE insulated PVC sheathed fire resistance prefab branch cable
YDF-NH-VV	Copper Conductor PVC insulated PVC sheathed fire resistance prefab branch cable
YDF-WL-YJE	Copper Conductor XLPE insulated polyolefine sheathed halogen free low smoke flame resistance prefab branch cable
YDF-WL-EE	Copper Conductor polyolefine insulated PVC sheathed halogen free low smoke flame resistance prefab branch cable
YDF-DL-YJV	Copper Conductor XLPE insulated PVC sheathed low halogen low smoke flame resistance prefab branch cable
YDF-DL-VV	Copper Conductor PVC insulated PVC sheathed low halogen low smoke flame resistance prefab branch cable
