0.6KV 1KV XLPE Insulated Low Voltage LV Cable With Copper Conductor LSZH Sheathed

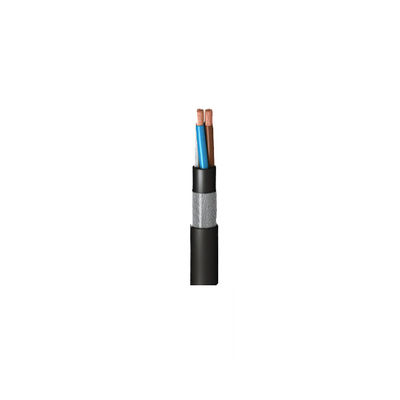

Large Image : 0.6KV 1KV XLPE Insulated Low Voltage LV Cable With Copper Conductor LSZH Sheathed

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,CCC,CE,TUV
Model Number:	YJV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

0.6KV 1KV XLPE Insulated Low Voltage LV Cable With Copper Conductor LSZH Sheathed

Description

Insulation Material:	XLPE	Conductor Material:	Copper
Jacket:	LSZH	Working Temperature:	90°C
Rated Voltage:	0.6 /1KV	Color:	Black
Highlight:	LSZH Sheathed 1KV LV Cable , 0.6KV LV Cable With Copper Conductor

0.6/1kV XLPE Insulated Low Voltage Cable Copper Conductor LSZH Sheathed

Multi-core LSZH cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks,
underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Construction

Conductor:Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation:Cross-linked polyethylene (XLPE).

Inner covering:PVC

Outer sheath:PVC outer sheath type ST2 according to IEC 60502-1. Black color.

Parameter

Nominal crosS- sectional area of conductor(mm²)	Nominal thickness of insulation(mm)	Thickness of inner Covering(mm)	Thickness of steel tape(mm)	Nominal thickness of sheath(mm)	Approx.overall diameter(mm)	Approx.weight(kg/km)
Nominal crosS- sectional area of conductor(mm²)	Nominal thickness of insulation(mm)	Thickness of inner Covering(mm)	Thickness of steel tape(mm)	Nominal thickness of sheath(mm)	Approx.overall diameter(mm)	YJV₃	YJV23	YJLV22	YJLV2
3×4	0.7	1.2	0.8	1.8	16	476	438	400	289
3×6	0.7	1.2	0.8	1.8	17	571	530	457	416
3×10	0.7	1.2	0.8	1.8	20	784	736	591	543
3×16	0.7	1.2	1.6	1.8	24	1341	1283	1036	978
3×25	0.9	1.2	1.6	1.8	28	1750	1684	1273	1207
3×35	0.9	1.2	1.6	1.8	30	2154	2078	1493	1417
3×50	1.0	1.2	1.6	2.0	30	2527	2447	1631	1551
3×70	1.1	1.2	2.0	2.1	35	3537	3435	2244	2142
3×95	1.1	1.2	2.0	2.3	38	4477	4358	2681	2562
3×120	1.2	1.2	2.0	2.4	42	5388	5254	3123	2989
3×150	1.4	1.3	2.5	2.5	46	6818	6662	4023	3867
3×185	1.6	1.4	2.5	2.7	51	8213	8027	4716	4530
3×240	1.7	1.5	2.5	2.9	56	10252	10030	5659	5437
3×300	1.8	1.5	2.5	3.0	58	12338	12097	6571	6330
