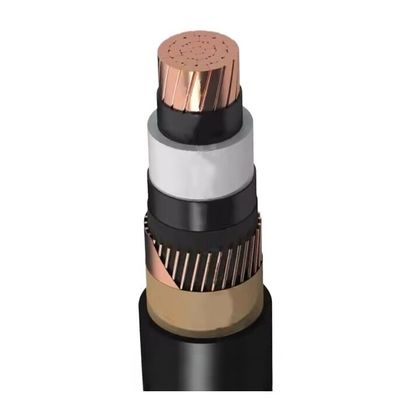

35KV 1 Core Medium Voltage Cable XLPE Insulated 1x185 1x300 MV Armoured Cable

35KV 1 Core Medium Voltage Cable XLPE Insulated 1x185 1x300 MV Armoured Cable
35KV 1 Core Medium Voltage Cable XLPE Insulated 1x185 1x300 MV Armoured Cable

Large Image :  35KV 1 Core Medium Voltage Cable XLPE Insulated 1x185 1x300 MV Armoured Cable

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,ISO,VDE,TUV
Model Number: Medium Voltage
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10Work days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

35KV 1 Core Medium Voltage Cable XLPE Insulated 1x185 1x300 MV Armoured Cable

Description
Conductor Material: Copper Insulation Material: XLPE
Jacket: PE Cores: 1 Core
Screen: Copper Wire Rated Voltage: 35 KV
Highlight:

1 Core Medium Voltage Cable

,

35KV MV Armoured Cable

35KV Single Core Medium Voltage Cable XLPE Insulated 1x185 1x300

Construction

1. Conductor- aluminum or copper multiwire circular compacted .

2. Conductor screen - extruded of conductive peroxide cross-linked PE.

3.Insulation - peroxide cross-linked PE.

4. Insulation screen - extruded of conductive peroxide cross-linked PE.

5.Combined screen:

5.1 A layer of conductive paper tapes or conductive polymer tape with minimum thickness of 0.2 mm.

5.2. A layer of copper wires with a nominal diameter range of 0.7 to 2.0 mm, over which a copper tape with minimum thickness of 0.1 mm is applied in helix. Minimum tape width is 8 mm.



Application



Medium voltage (MV) cables, typically operating within the voltage range of 1 kV to 35 kV, are essential components in modern electrical power distribution systems. They are widely used in various industries and applications due to their ability to efficiently transmit electrical energy over medium distances with minimal losses.

Specifications



Table 1-6026/35(26/45)kV Single-core XLPE insulated PVC/PE sheathed power cable&steel tape armoured power cable

Nominal
crosS-
sectional
area of
conductor
(mm²)
Overall
diameter
of
Counductor
(mm)
Norminal
thickness
of
insulation
(mm)
Unarmoured power cable
Armoured power cable

Norminal
thinckness of
sheath
(mm)
Approx.
Overall
diameter
(mm)
Approx.Weight
(kg/km)
Thiakness
of steel
tape
(mm)
Norminal
thickness of
sheath
(mm)
Approx.
Overall
diameter
(mm)
Approx.Weight
(kg/km)
Cu   Al Cu Al
1x50 8.1  10.5  2.2  39  1768  1458  0.5  2.3  43  2636  2351
1x70 9.9  10.5  2.2  41  2050  1616  0.5  2.4  45  2961  2550
1x95 11.5  10.5  2.3  43  2388  1799  0.5  2.5  47  3344  2773
1x120 13.0  10.5  2.3  44  2689  1945  0.5  2.5  48  3689  2969
1x150 14.4  10.5  2.4  45  3065  2135  0.5  2.6  50  4040  3150
1x185 16.1  10.5  2.4  47  3483  2336  0.5  2.6  52  4476  3364
1x240 18.3  10.5  2.5  50  4123  2635  0.5  2.7  54  5245  3783
1x300 20.6  10.5  2.6  52  4818  2958  0.5  2.8  57  5976  4138
1x400 23.3  10.5  2.7  55  5947  3467  0.5  2.9  60  6976  4642
1x500 26.7  10.5  2.8  61  6949  3849  一 - - - -
