OEM 8.7-15KV Medium Voltage Cable XLPE Insulated STA NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY

OEM 8.7-15KV Medium Voltage Cable XLPE Insulated STA NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY
OEM 8.7-15KV Medium Voltage Cable XLPE Insulated STA NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY

Large Image :  OEM 8.7-15KV Medium Voltage Cable XLPE Insulated STA NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Payment & Shipping Terms:
Minimum Order Quantity: To be negotiated
Price: To be negotiated
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

OEM 8.7-15KV Medium Voltage Cable XLPE Insulated STA NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY

Description
Voltage: 8.7-15kV Insulation: XLPE
Amour: Steel Tape Item No: NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY
Conductor: Copper Or Aluminium Screen: Copper Tape
Highlight:

Medium Voltage Cable XLPE Insulated

,

OEM 15KV Medium Voltage Cable

,

Medium Voltage NA2XSY Cable

8.7-15KV Medium Voltage Power Cable XLPE Insulated STA NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY



Application

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals,in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain..

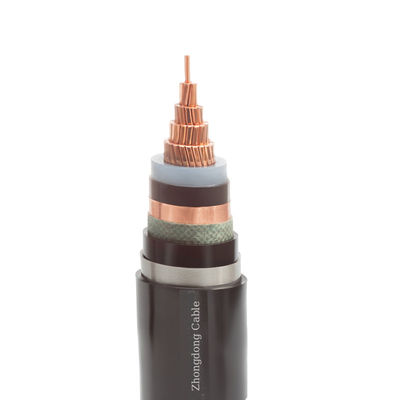

Construction

  1. Conductor: Circular compacted stranded Copper or aluminium
  2. Conductor screen: Extruded semi-conductive compound
  3. Insulation: XLPE
  4. Insulation screen: Extruded semi-conductive compound
  5. Metallic screen: Copper tape
  6. Binder tape: non-hygroscopic material
  7. Inner covering(bedding):  PVC
  8. Metallic armor: Galvanized steel tape



Description

  1. Rated voltage: 2-35 kV
  2. Max. Conductor Temp.: no (90°C), short circuit no more than 5 s (160°C when section-area below 300mm2, 140°C when section-area above 300mm2)
  3. Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
  4. Min. Bending Radius: single core cable 20(d+D)±5%
  5. Multi-core cable 15(d+D)±5%



Specification



Specification

Outer diameter

Approx. outer diameter of cable

Approx. weight of cable

Max. D.C. resistance of conductor at 20℃

mm2

mm

mm

kg/km

Ω/km







Cu

Al

Cu

Al

1×25

6

25.4

999

846.75

0.727

1.2

1×35

7

26.4

1129.7

917.5

0.524

0.868

1×50

8.4

27.8

1313.3

1016.7

0.387

0.641

1×70

10

29.5

1578.4

1157

0.268

0.443

1×95

11.5

31.2

1870.2

1292.7

0.193

0.32

1×120

13

32.7

2173.4

1443

0.153

0.253

1×150

14.5

34.3

2510.8

1593.1

0.124

0.206

1×185

16.2

37.4

2919.5

1783.4

0.0991

0.164

1×240

18.4

39.8

3532.6

2053.1

0.0754

0.125

1×300

20.5

42.1

4172.8

2315.6

0.0601

0.1

1×400

23.5

45.5

5166.9

2744.7

0.047

0.0778

1×500

26.5

48.8

6296.3

3218.5

0.0366

0.0605

1×630

30

52.6

7631.1

3776.8

0.0283

0.0469
