KVV Multi Cores Flexible Control Cable 0.75 1.0 1.5 2.5 IEC 60227 IEC60228 Standard

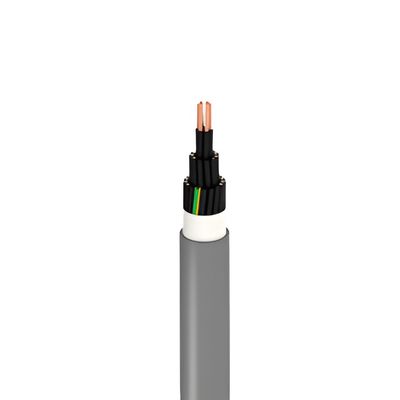

Large Image : KVV Multi Cores Flexible Control Cable 0.75 1.0 1.5 2.5 IEC 60227 IEC60228 Standard

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,VDE,ISO,TUV
Model Number:	KVV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Steel Drums
Delivery Time:	10Work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

KVV Multi Cores Flexible Control Cable 0.75 1.0 1.5 2.5 IEC 60227 IEC60228 Standard

Description

Conductor Material:	Copper	Insulation Material:	PVC
Application:	Industrial	Jacket:	PVC
Color:	Optional	Cores:	4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Highlight:	KVV Multi Cores Flexible Control Cable , IEC60228 Standard Flexible Control Cable

KVV Multi Cores Flexible Control Cable 0.75 1.0 1.5 2.5 Copper

Construction

Conductor: Stranded Copper Conductor, class 2

Insualtion: PVC

Sheath: PVC

Application

Low smoke halogen-free flexible connecting cable for instrumentation and control equipment for tooling machinery, production lines, and in flexible applications with free movement and no tensile load. Suitable for use in dry, ambient and wet rooms. These cables are not suitable for outdoor or underground installations.

Characteristics

Voltage Rating :300/500V

Temperature Rating :Fixed: -40°C to +80°C Flexed: -15°C to +70°C
Minimum Bending Radius :Fixed: 6 x overall diameter Flexed: 15 x overall diameter

Standard

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request.

Type

ype	Name	Applying bound
KVV	Copper conductor PVC insulated and sheathed control cable	For laying indoors, in trenches, and in ducts for the fixed installation
KVVP	Copper conductor PVC insulated & sheathed copper wire braiding screened control cable	For laying indoors, in trenches, and in ducts for the fixed installation
KVVP2	Copper conductor PVC insulated and sheathed control cable with steel tape shied	For laying indoors, in trenches, and in ducts for the fixed installation
KVV22	Copper conductor PVC insulated and sheathed control cable with steel tape armoured	For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation
KVVR	Copper conductor PVC insulated flexible control cable	For laying indoors, movable and flexible
ZR-KVVP	Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable	Fixed laying indoors with capability of moving and screening
ZR-KVV	Copper conductor PVC insulated and sheathed flame retardant control cable	For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance
ZR-KVVP2	Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield	For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance
ZR-KVV22	Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured	For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear beavier extermal mechanical force and for fixed installation
ZR-KVVR	Copper conductor PVC insulated and sheathed flame retardant flexible control cable	For laying indoors, and the cable should be flame-retardant flexible and movable
