NYM-J Copper Conductor Electrical Wire  PVC Insulation 300/500V

Application

NYM-J cable is primarily used in fixed electrical installations where safety and durability are critical.

• Residential Buildings: Wiring for lighting, sockets, and switches.
• Commercial Buildings: Electrical distribution in offices, shops, and small industrial facilities.
• Conduit or Trunking Installations: Suitable for installation inside walls, conduits, or cable trays.
• Dry and Moist Environments: Can be used in both dry and moderately damp conditions (but not suitable for direct burial or outdoor exposure without additional protection).

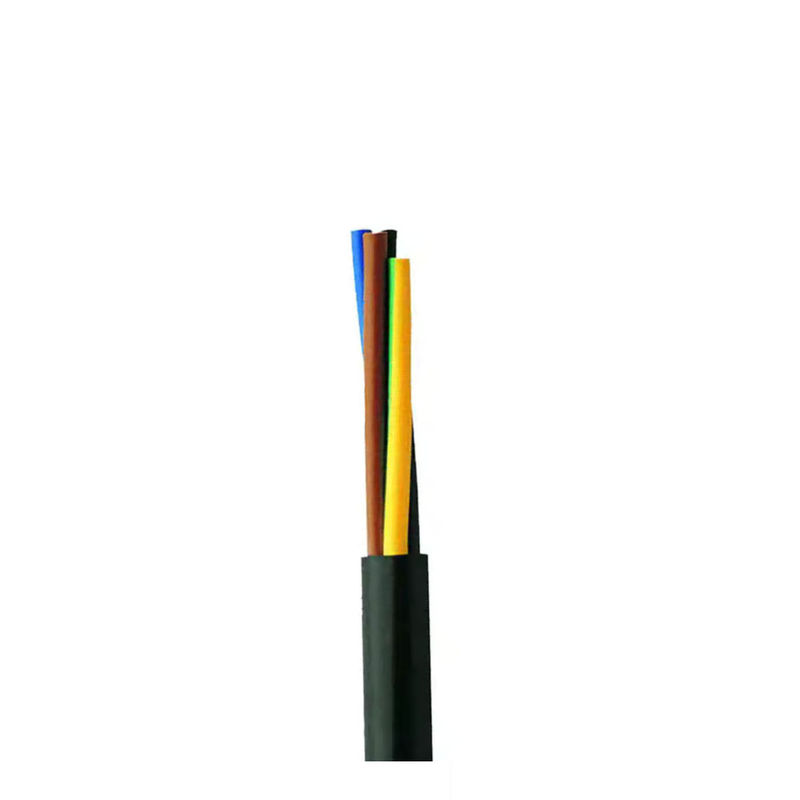

Structure

• Conductor: Copper (multi-core or single-core).
• Insulation: PVC (polyvinyl chloride) for each core.
• Outer Sheath: PVC for overall protection.
• Earth Conductor: Includes a separate yellow-green grounding wire for safety.

Advantages

• Compliance: Meets European electrical standards (e.g., DIN VDE).
• Ease of Installation: Designed for straightforward installation in fixed setups.
• Cost-Effective: Provides a balance between performance and cost for indoor electrical systems.

Standard

• GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997,  IEC227
• BV/BLV is General purpose single-core hard CU/AL conductor non-sheath cable.
• Rated voltage:300/500v 450/750v
