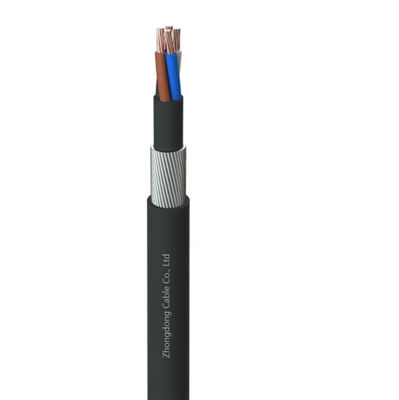

PVC Insulated Low Voltage Control Cable 450/750V Copper Conductor LV Power Cable

Large Image : PVC Insulated Low Voltage Control Cable 450/750V Copper Conductor LV Power Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

PVC Insulated Low Voltage Control Cable 450/750V Copper Conductor LV Power Cable

Description

Usage:	Access Control System	Insulation:	XLPE PE PVC
Voltage:	300/500V ,450/750V	Length:	Customized
Conductor Material:	Copper	Packing:	Neutral Carton Packing Or Customized
Highlight:	Copper Conductor LV Power Cable , PVC Insulated Low Voltage Control Cable

PVC Insulated Low Voltage Cable Control Cable 450/750V Copper Conductor

Application

PVC insulated control cables are used for electricity supply in low voltage installation system.This product is mainly used in chemical and industrial fields, and the laying method is mainly buried underground.

Construction

Conductor: Circular, solid, compacted or sector shaped stranded Coppe
Insulation:PVC
Filler:Non-hygroscopic material
Binder tape: Non-hygroscopic material
Amour: steel tape
Sheath: PVC

Description

Rated voltage 450/750V or less,The control cable can be made as flame retardant when customer required.
Laying Temperature:during laying environment temperature shall not be less than 0℃,the cable should be preheated.
Operating Temperature:max permissible continuous operating temperature of conductor shall not exceed 70℃.
Bending Radius:16D for armored cable

Product range

Number of cores x Nominal cross section	Nominal thickness of insulation	Nominal sheath thickness	Average outside diameter		Max. DC resistance of conductor at 20 ℃	Approx. Weight of cable
mm2	mm	mm	mm		Ω/km	kg/km
			Limit	Caps
4×0.75	0.6	1.2	8.1	9.7	24.5	106.8
4×1.0	0.6	1.2	8.4	10.2	18.1	120.7
4×1.5	0.7	1.2	9.5	11.4	12.1	155.2
4×2.5	0.8	1.5	10.9	13.1	7.41	238.4
4×4	0.8	1.5	12.5	15.1	4.61	309.7
4×6	0.8	1.5	13.6	16.5	3.08	400.2
4×10	1	1.7	17.1	20.7	1.83	648.4
