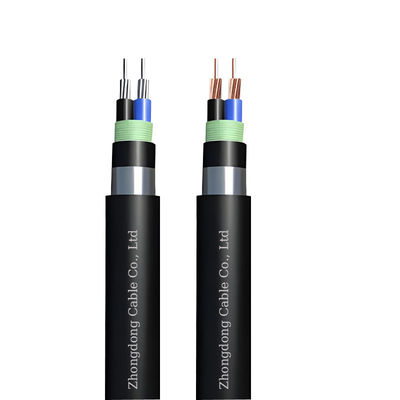

Steel Tape Armoured STA Low Voltage Cable Two Core XLPE Insulated CU AL Conductor

Large Image : Steel Tape Armoured STA Low Voltage Cable Two Core XLPE Insulated CU AL Conductor

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,CCC,CE,TUV
Model Number:	YJV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Steel Tape Armoured STA Low Voltage Cable Two Core XLPE Insulated CU AL Conductor

Description

Insulation Material:	XLPE	Conductor Material:	Copper Or Aluminum
Jacket:	LSZH	Working Temperature:	90°C
Rated Voltage:	0.6 /1KV	Color:	Black
Highlight:	Armoured STA Low Voltage Cable , AL Conductor Steel Tape Armoured Cable , XLPE Insulated Cable Low Voltage

Steel Tape Armoured STA Low Voltage Cable Two Core XLPE Insulated CU AL Conductor

Application

This XLPE insulated steel tape armored power cable is used in underground power transmission lines of rated voltage 1KV and below. Steel tape armor allows the power cable to bear considerable vertical pressures.

Construction

Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum
Insulation:Cross-linked polyethylene (XLPE).
Inner covering:PVC
Outer sheath:PVC outer sheath type ST2 according to IEC 60502-1. Black color.

Parameter

Specification	Outer diameter of conductor	Nominal sheath thickness	Approx. outer diameter of cable	Approx. weight of cable
mm2	mm	mm	mm	kg/km
				CU	AL
2X4	2.24	1.8	13.3	290.1	240.4
2X6	2.76	1.8	14.3	353.2	278.6
2X10	3.8	1.8	16.4	498.5	374.1
2X16	4.8	1.8	18.4	649.6	450.6
2X25	6	1.8	21.6	887.9	577
2X35	7	1.8	23.6	1116.5	681.3
2X50	8	1.8	21	1304.8	683
2X70	9.5	1.9	23.8	1741.1	870.6
2X95	11	2	26.6	2264.3	1082.9
2X120	12.4	2.2	30.6	3082.5	1590.2
2X150	13.8	2.3	33.8	3763.8	1898.4
2X185	15.4	2.4	37.1	4543.7	2243.1
2X240	17.5	2.6	41.7	5809.3	2824.7
2X300	19.6	2.8	45.8	7086.2	3355.4

case

Steel Tape Armoured STA Low Voltage Cable Two Core XLPE Insulated CU AL Conductor 0
