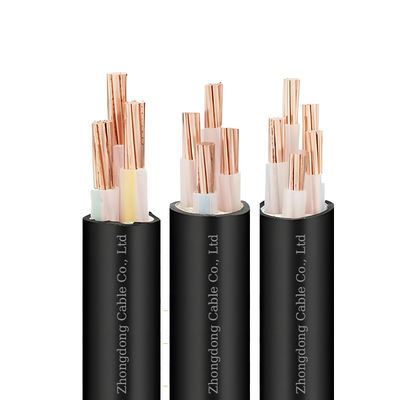

1KV N2XY/NA2XY Low Voltage Electrical Cable 3 Core 4 Core 5 Core IEC 60502-1

1KV N2XY/NA2XY Low Voltage Electrical Cable 3 Core 4 Core 5 Core IEC 60502-1
1KV N2XY/NA2XY Low Voltage Electrical Cable 3 Core 4 Core 5 Core IEC 60502-1
1KV N2XY/NA2XY Low Voltage Electrical Cable 3 Core 4 Core 5 Core IEC 60502-1 1KV N2XY/NA2XY Low Voltage Electrical Cable 3 Core 4 Core 5 Core IEC 60502-1

Large Image :  1KV N2XY/NA2XY Low Voltage Electrical Cable 3 Core 4 Core 5 Core IEC 60502-1

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,CCC,ISO
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different Qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

1KV N2XY/NA2XY Low Voltage Electrical Cable 3 Core 4 Core 5 Core IEC 60502-1

Description
Voltage: 600V, 1000V Item No: N2XY/NA2XY
No Of Core: 3, 4,5 Standard: IEC60502-1
Feature: LSZH Insulation: XLPE
Highlight:

Low Voltage Electrical Cable 3 Core

,

IEC 60502-1 Low Voltage Electrical Cable

1KV N2XY/NA2XY Low Power Cable CU/XLPE/PVC LSZH 3 Core 4 Core 5 Core  IEC 60502-1





Application



Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.





Construction



  1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation:XLPE
  3. Filler: Non-hygroscopic material
  4. Inner sheath: PVC
  5. Outer Sheath PVC



Technical data:



The ambient temperature for installation: ≥0℃.

  1. Maximum conductor temperature in normal operation:≤90℃.
  2. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
  3. Permissible minimum bending radius:
  4. Single unarmoured cable: 20 x OD
  5. Multi-core unarmoured cable: 15 x OD
  6. Single armoured cable: 5 x OD
  7. Multi-core armoured cable: 12 x OD
  8. Note : OD=Overall Diameter of Cable



Specification



Specification

Outer diameter of conductor

Nominal sheath thickness

Approx. outer diameter of cable

Approx. weight of cable

mm2

mm

mm

mm

kg/km









CU

AL

3X1.5 RE

1.38

1.8

10.2

132

104

3X2.5 RE

1.78

1.8

11.1

168.7

122

3X4 RE

2.24

1.8

12.1

220.4

145.8

3X6 RE

2.76

1.8

13.2

296.6

184.7

3X10 CC

3.8

1.8

15.4

439.4

252.9

3X16 CC

4.8

1.8

17.6

645.9

347.4

3X25 CC

6

1.8

21

937.2

470.9

3X35 CC

7

1.8

23.2

1231.6

578.7

3X50 SM

8

1.8

22.1

1611.4

678.8

3X70 SM

9.5

1.9

25.7

2213.1

907.4

3X95 SM

11

2

28.7

2938.7

1166.6

3X120 SM

12.4

2.1

32.5

3687

1448.5

3X150 SM

13.8

2.3

36.8

4598.4

1800.4

3X185 SM

15.4

2.4

40.9

5654.8

2203.8

3X240 SM

17.5

2.6

45.7

7268

2791.1

3X300 SM

19.6

2.8

50.5

9019.7

3423.5

4X1.5 RE

1.38

1.8

10.9

157.8

120.5

4X2.5 RE

1.78

1.8

11.9

205.1

142.9

4X4 RE

2.24

1.8

13

272.3

172.8

4X6 RE

2.76

1.8

14.2

371

221.8

4X10 CC

3.8

1.8

16.8

543.9

295.2

4X16 CC

4.8

1.8

19.2

787.2

389.2

4X25 CC

6

1.8

23

1188.9

567.1

4X35 CC

7

1.8

25.4

1577.4

706.9

4X50 SM

8

1.9

26.1

2134.8

891.2

4X70 SM

9.5

2

30.1

2931.8

1190.8

4X95 SM

11

2.1

33.5

3895.1

1532.3

4X120 SM

12.4

2.3

36.6

4874.6

1890

4X150 SM

13.8

2.4

40.9

6078.8

2348.1

4X185 SM

15.4

2.6

46.5

7492.1

2890.8

4X240 SM

17.5

2.8

51.1

9619.9

3650.7

4X300 SM

19.6

3

56.3

11943.2

4481.7

Specification

Outer diameter of conductor

Nominal sheath thickness

Approx. outer diameter of cable

Approx. weight of cable

mm2

mm

mm

mm

kg/km









CU

AL

5X1.5 RE

1.38

1.8

11.7

184.3

137.7

5X2.5 RE

1.78

1.8

12.8

242.3

164.6

5X4 RE

2.24

1.8

14.1

324.9

200.6

5X6 RE

2.76

1.8

15.4

446.3

259.8

5X10 CC

3.8

1.8

18.2

664.2

353.3

5X16 CC

4.8

1.8

20.9

965.5

468.1

5X25 CC

6

1.8

25.3

1456.5

679.2

5X35 CC

7

1.8

28

1939.4

851.3

5X50 CC

8.4

2

32.1

2649.3

1094.9

5X70 CC

10

2.1

37.1

3645.3

1469

5X95 CC

11.5

2.3

41.6

4846.2

1892.7

5X120 CC

13

2.4

46.4

6074.4

2343.6

5X150 CC

14.5

2.6

51.9

7589.3

2925.8

5X185 CC

16.2

2.8

56

9342.3

3590.7

5X240 CC

18.4

3

64.9

12016.7

4555.2

5X300 CC

20.5

3.2

71.5

14918

5591.1
