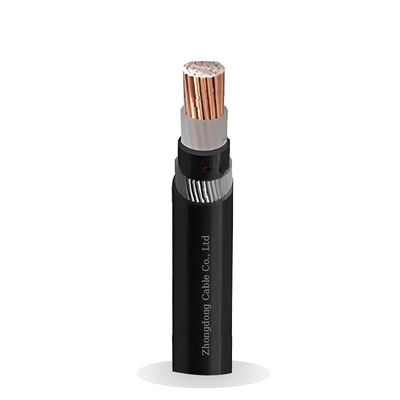

18/30kV 19/33kV SWA Medium Voltage Cable Single Core PVC Jacket YJV32 YJLV42

18/30kV 19/33kV SWA Medium Voltage Cable Single Core PVC Jacket YJV32 YJLV42

Application

1. Mine environments: In mines, cables need to withstand large mechanical stresses and harsh environmental conditions. The thick steel wire armor and good insulation performance of YJV42 cable enable it to operate safely and reliably in mines, providing power support for mining equipment.
2. Industrial installations: Suitable for various industrial settings where reliable power transmission is required. It can handle the mechanical stresses and environmental challenges often encountered in industrial facilities.
3. Power stations: Can be used in power stations to transmit power from generators to the grid or within the station. Its high mechanical strength and electrical performance make it a reliable choice for such applications.

Construction

1. Conductor:Class 2 Aluminium/Copper circular, stranded
2. Conductor Screen:Semi-conductive XLPE (Cross-Linked Polyethylene)
3. Insulation :XLPE (Cross-Linked Polyethylene)
4. Insulation Screen :Semi-conductive XLPE (Cross-Linked Polyethylene)
5. Metallic Screen :Copper wire screen
6. Tape Plastic tape is applied over the screen
7. Filler Extruded polymeric material
8. Bedding PVC (Polyvinyl Chloride)
9. Armour :SWA (Galvanized Steel Wire Armoured)
10. Sheath :Extruded PVC (Polyvinyl Chloride) type ST2
