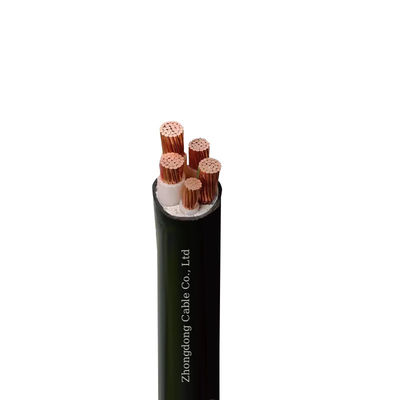

Copper Conductor Xlpe Insulated Armoured Cable SWA PVC Sheath Multi Core

Copper Conductor XLPE Insulated Power cable Steel Wire Aromoured SWA PVC Sheath

Application

XLPE insulated power cables  are  used  for power networks supply ,undergrand,outdoor and indoor applications and for use in cable ducting. Suitable for use in power distribution lines with rated voltage 0.6/1KV  low voltage installation system . For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force

Construction

1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
2. Insulation:XLPE
3. Filler: Non-hygroscopic material
4. Inner sheath:PVC
5. Armouring: Steel Wire Armoured
6. Outer sheath:PVC

Advantage

1. Composite high temperature resistance performance
2. Compressive and tensile strengthening
3. Anti bending and anti deformation
4. Electromagnetic and Environmental Adaptability
5. Low frequency interference shielding
6. Chemical corrosion protection
7. Direct burial without conduit
8. Extended lifespan

Characteristic

1. Test Voltage: 3.5kV 5min No Breakdown
2. The ambient temperature for installation: ≥0℃.
3. Maximum conductor temperature in normal operation:≤90℃.
4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
5. Permissible minimum bending radius:
6. Multi-core armoured cable: 12 x OD
