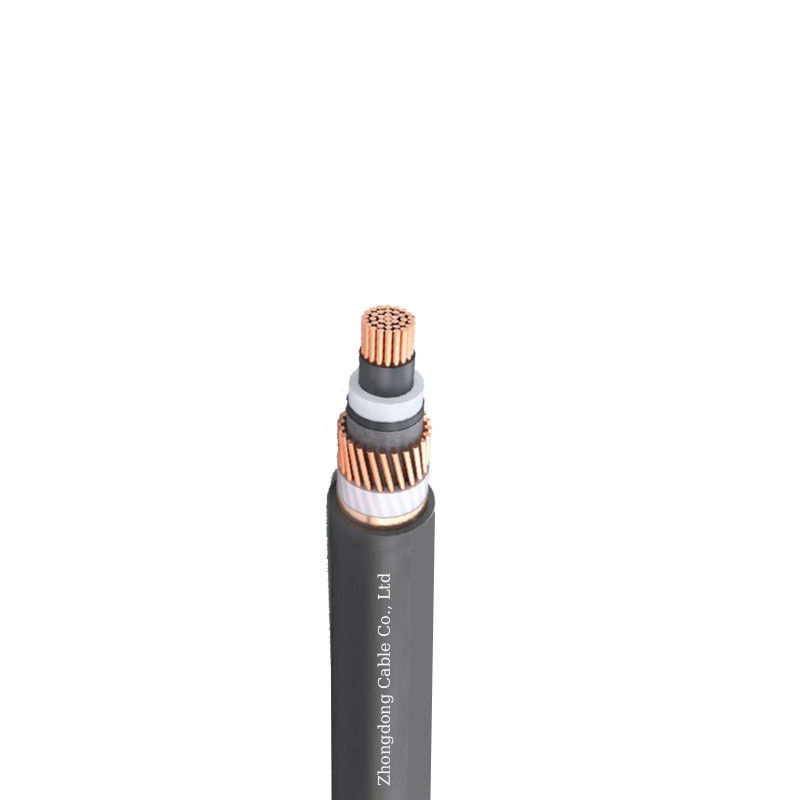

0.6/1kV XLPE Insulated Power Cable With PVC / LSZH Jacket

Application

The XLPE insulated power cable is widely used in various applications, such as underground installation, overhead installation, and indoor installation. It is used in power transmission and distribution systems, as well as in industrial and mining applications. The cable is suitable for use in areas where there is a need for reliable and safe electrical supply.

Construction

1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
2. Insulation:XLPE
3. Filler: Non-hygroscopic material
4. Inner sheath:PVC
5. Armouring: Steel Wire Armoured
6. Outer sheath:PVC

Advantage

1. Composite high temperature resistance performance
2. Compressive and tensile strengthening
3. LSZH jacket
4. Anti bending and anti deformation
5. Electromagnetic and Environmental Adaptability
6. Low frequency interference shielding
7. Chemical corrosion protection
8. Direct burial without conduit
9. Extended lifespan

Characteristic

1. Test Voltage: 3.5kV 5min No Breakdown
2. The ambient temperature for installation: ≥0℃.
3. Maximum conductor temperature in normal operation:≤90℃.
4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
5. Permissible minimum bending radius:
6. Multi-core armoured cable: 12 x OD
