Flame Retardant Copper Core Solar Cable XLPO Jacket Photovoltaic PV Cable 1 Core

Large Image : Flame Retardant Copper Core Solar Cable XLPO Jacket Photovoltaic PV Cable 1 Core

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO
Model Number:	H1Z2Z2-K

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	woodern drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	500KM/Week

Contact Now

Flame Retardant Copper Core Solar Cable XLPO Jacket Photovoltaic PV Cable 1 Core

Description

Insulation Material:	Xlpe	Jacket:	XLPO
Conductor Material:	Class 5 Tinned Copper	Application:	Construction
Core:	1 Core	Colour:	Black /Other Colours Available On Request
Highlight:	XLPO Jacket Photovoltaic PV Cable , Flame Retardant Solar Cable 1 Core , XLPO Jacket Photovoltaic Cable

Flame Retardant Copper Core Solar Cable XLPO Jacket Solar Photovoltaic Pv Cable

Description

Photovoltaic cable power cables AC0.6/1kV(DC1.8KV)
High temperature and UV radiation resistance, long lifespan and reliability
‌Features:‌

‌Flame Resistance‌: Designed to inhibit flame spread and self-extinguish when the ignition source is removed, reducing fire hazards.
‌Low Smoke Emission‌: Produce minimal smoke and toxic gases (halogen-free variants) during combustion, enhancing safety in enclosed spaces.
‌High Temperature Resistance‌: Withstand elevated temperatures without degrading performance.
‌Durability‌: Resistant to chemicals, abrasion, and environmental stressors for reliable operation in harsh conditions.
‌Compliance‌: Meet international safety standards (e.g., IEC, UL) for fire safety and electrical performance.

Structure

Conductor: Tinned copper, offering excellent conductivity and corrosion resistance.
Insulation: Cross-linked polyethylene (XLPO) or similar material, providing high thermal and mechanical resistance.
Sheath: Halogen-free, flame-retardant material, ensuring safety and environmental compliance.

Applications

‌Solar Power Plants‌: Connects solar panels, inverters, and junction boxes in utility-scale or rooftop PV systems.
‌Residential/Commercial Solar Installations‌: Used in rooftop arrays, balconies, or solar carports to ensure fire safety and reliability.
‌Off-Grid Systems‌: Deployed in remote solar setups (e.g., rural electrification, solar pumps) requiring flame resistance and environmental resilience.
‌Floating Solar Farms‌: Suitable for water-based PV installations due to moisture-resistant and flame-retardant properties.
‌Agricultural PV Projects‌: Integrates with solar-powered irrigation or greenhouses exposed to harsh outdoor conditions.

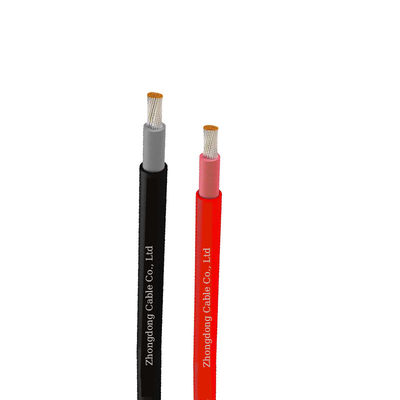

Flame Retardant Copper Core Solar Cable XLPO Jacket Photovoltaic PV Cable 1 Core 1

Electrical Characteristics

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Insulation thickness	Nominal Sheath thickness	Nominal Overall diameter	Nominal Cable weight	Max.Resistance of conductor at 20ºC	Current Carrying Capacity
PV Single core Solar cable
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)	A
1 x 1,5	30 x 0,25	0,8	0,8	4.8	38	13,7	30
1 x 2,5	50 x 0,25	0,85	0,9	5.4	46	8,21	41
1 x 4	56 x 0,30	0,85	1,0	6.1	61	5,09	55
1 x 6	84 x 0,30	0,9	1,1	7.0	90	3,39	70
1 x 10	80 x 0,40	0,9	1,2	8.2	131	1,95	98
1 x 16	128 x 0,40	0,9	1,2	9.3	187	1,24	132
1 x 25	200 x 0,40	0,9	1,2	10.7	278	0,795	176
1 x 35	280 x 0,40	0,9	1,2	12.4	374	0,565	218
PV Twin core Solar cable
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)	A
2 x 1,5	30 x 0,25	0,8	0,8	4.8x9.6	76	13,7	30
2 x 2,5	50 x 0,25	0,85	0,9	5.4x10.8	92	8,21	41
2 x 4	56 x 0,30	0,85	1,0	6.1x12.2	122	5,09	55
2x 6	84 x 0,30	0,9	1,1	7.0x14.0	180	3,39	70
2x 10	80 x 0,40	0,9	1,2	8.2x16.4	262	1,95	98
2 x 16	128 x 0,40	0,9	1,2	9.3x18.6	374	1,24	132
2 x 25	200 x 0,40	0,9	1,2	10.7x21.4	556	0,795	176
2x 35	280 x 0,40	0,9	1,2	12.4x24.8	748	0,565	218
