PVC Type ST5 Sheath Electrical Wires Cable Copper Core Flexible Cable 500v

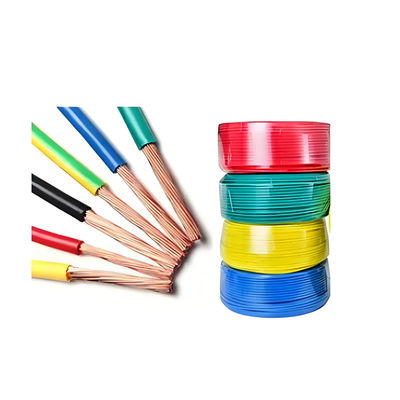

Large Image : PVC Type ST5 Sheath Electrical Wires Cable Copper Core Flexible Cable 500v

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO
Model Number:	BV BVR

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	7-30 days based on different Qty
Payment Terms:	L/C,T/T
Supply Ability:	1000KM/Week

Contact Now

PVC Type ST5 Sheath Electrical Wires Cable Copper Core Flexible Cable 500v

Description

Application:	Indoor Use For Household Electrical Wiring	Size:	Various Sizes Available
Keywords:	Earth Cable, Ground Wire	Voltage Rating:	500V, 1000V
Insulation Material:	PVC/XLPE	Color:	Various Colors Available
Highlight:	PVC Type Electrical Wires Cable , Copper Core Flexible Cable 500v , ST5 Sheath Electrical Wires Cable

PVC Type ST5 Sheath Electrical Wire Cable Copper Core 500v

Application

Used in the switch control,relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equiment, motor starters and controllers.

Product Introduction

Indoor 300/500V AWG PVC Insulated Copper Wire
Product : PVC insulated electric wire
Conductor:Single or stranded copper
PVC insulation
Rated voltage: 300/500V,450/750V
The long-time working temperature should not beyond 70ºC.
Adopt standard thickness easy truncation.

Service Condition

Indoor 300/500V AWG PVC Insulated Copper Wire
Working temperature:Not more than 105ºC for RV-105 model.The other no more than 70ºC.
Indoor 300/500V AWG PVC Insulated Copper Wire

Parameters

Nom.Cross-section Area	Number/Diameter of core	Max.overall Diameter	Max.R of conductor at 20℃	Approx.weight
mm2	mm	mm	ohm/km	kg/km
2x0.75	2x1/0.97	4.6x7.0		43.7
2x1.0	2x1/1.13	4.8x7.4		51.0
2x1.5	2x1/1.38	5.4x8.4		65.9
2x2.5	2x1/1.78	6.2x9.8	7.41	95.7
2x4	2x7/0.85	7.2x11.5	4.61	146
2x6	2x7/1.04	8.0x13.0	3.08	200
2x10	2x7/1.35	9.6x16.0	1.83	323
3x0.75	3x1/0.97	4.6x9.4	24.5	62.6
3x1.0	3x1/1.13	4.8x9.8	18.1	74.3
3x1.5	3x1/1.38	5.4x11.5	12.1	95.6
3x2.5	3x1/1.78	6.2x13.5	7.41	140
3x4	3x7/0.85	7.4x16.5	4.61	220
3x6	3x7/1.04	8.0x18.0	3.08	295
3x10	3x7/1.35	9.6x22.5	1.83	485
