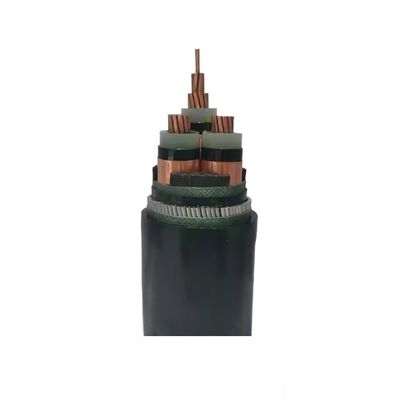

XLPE Insulation PVC Sheath Medium Voltage Wire SWA Armour 8.7KV 15KV MV Cable

XLPE Insulation PVC Sheath Medium Voltage Wire SWA Armour 8.7KV 15KV MV Cable
XLPE Insulation PVC Sheath Medium Voltage Wire SWA Armour 8.7KV 15KV MV Cable

Large Image :  XLPE Insulation PVC Sheath Medium Voltage Wire SWA Armour 8.7KV 15KV MV Cable

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO,CCC,TUV,CE,VDE
Model Number: Medium Voltage
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Steel Wooden Drum
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/WEEK
Contact Now

XLPE Insulation PVC Sheath Medium Voltage Wire SWA Armour 8.7KV 15KV MV Cable

Description
Insulation Material: Xlpe Application: Construction
Conductor Material: Copper Sheath: PVC
Cores: 3 Core Armour: Aluminum Wire/Tape, Steel Wire/Tape,Non-magnetic Stainless Steel Wire
Highlight:

PVC Sheath Medium Voltage Wire

,

XLPE Insulation Medium Voltage Wire

,

SWA Armour 15KV MV Cable

8.7/15KV XLPE Insulation PVC Sheath Medium Voltage Cable SWA Armour



Applications



This 8.7/15kV XLPE Insulation PVC Sheath SWA (Steel Wire Armoured) Cable is commonly used for:

Underground Power Distribution – Reliable medium-voltage transmission in urban and industrial networks.

Direct Burial & Duct Installation – Protected by steel armour against mechanical damage and rodent attacks.

Industrial & Utility Applications – Suitable for power plants, substations, and heavy machinery connections.

Wet & Corrosive Environments – PVC sheath provides moisture and chemical resistance.

Outdoor & Exposed Installations – UV-resistant and durable for above-ground use when needed.

Its XLPE insulation ensures high thermal stability (up to 90°C), while the steel wire armour (SWA) enhances strength and safety. Ideal for fixed installations requiring robust protection.





Construction



Conductor:Class 2 stranded copper conductor

Conductor Screen :Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation :XLPE (Cross-Linked Polyethylene) Insulation

Screen :Semi-conductive XLPE (Cross-Linked Polyethylene)

Metallic Screen :Individual or collective overall copper tape screen

Filler :PET (Polyethylene Terephthalate) fibres Separator :Binding tape

Bedding :PVC (Polyvinyl Chloride)

Armour :Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Steel Wire Armoured)

Sheath :PVC (Polyvinyl Chloride)



Specification



Reference Standards:
IEC60502-2, IEC 60228, IEC60332 -1/2/3, BS6622, BS7835, VDE0276, AS/NZS 1429.1, GB/T 12706, etc.
Rated Voltage:
6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kV
Core Number:
Single Core or Three Core (1C or 3C)
Available Dimensions:
25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.
Codes Available:
N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY,
N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY
YJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32
Application:
For power networks, underground, outdoors and in cable ducting. It is recommended that the installation instructions indicated by
the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will
not be affected during installation.
Construction:

Conductor:
Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed.
Conductor Screen:
Semi-conducting material
Insulation:
XLPE (Cross-Linked Polyethylene)
Insulation Screen:
Semi-conducting material
Metallic Screen:
Copper tape screen or copper wire screen (CTS / CWS )
Filler:
PP rope
Separator:
Binding tape
Bedding:
PVC (Polyvinyl Chloride)
Armouring:
Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA)
Sheath:
PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR
Colour:
Red or Black
Temperature Rating:
0°C to 90°C
Minimum Bending Radius:
Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall
diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use
of a former
