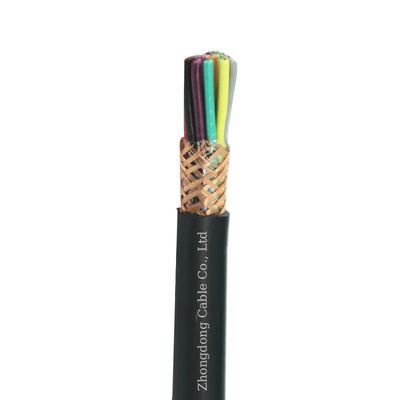

Fire Resistant Power Control Cable 450 V 750V KVV 3 4 10 12 21 24 Core Grease Resistant

Large Image : Fire Resistant Power Control Cable 450 V 750V KVV 3 4 10 12 21 24 Core Grease Resistant

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Fire Resistant Power Control Cable 450 V 750V KVV 3 4 10 12 21 24 Core Grease Resistant

Description

Colour:	Yellow, Black Or As Requests	Rated Voltage:	0.6/1(1.2)KV
Application:	Used To Control And Transmit Signals In Various Industrial And Commercial Settings	Cores:	3-24 Cores
Jacket Material:	PVC	Voltage:	300/500V
Highlight:	24 Core 450 V Power Control Cable , Grease Resistant Power Control Cable

Fire Resistant Power Control Cable 450/750V KVV 3 4 10 12 21 24 Core

Application

Fire resistant power control cables are mainly for industry, machinery and outdoor environment. The YSLY cable is resistant against most usual chemicals, oil and grease.

Construction

Conductor: Copper ,Stranded
Insulation: PVC
Sheath:PVC
Other special characteristics: Design and manufacture according to the requirements of customers.

Cable performance

Rated voltage: 450/750V
Long-term working temperature: not be higher than 70°C
When laying the cable, the ambient temperature should not lower than 0°C
Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.

Product range

Type	Name	Rated Voltage	Number of cores	Section Area (mm2)	Range of application
KVV	Copper Conductor, PVC Insulated and Sheathed Control Cable	450/750	2-61	0.75-2.5	For laying indoors, in cable trench, pipelines and other fixed occasion
			2-14	4-6
			2-10	10
KVV22	Copper Conductor,PVC Insulated and Sheathed, Steel tape Armored Control Cable		7-61	0.75-1.5	For laying indoors, in cable trench,directly buried pipeline and other fixed occasion, also can bear larger external mechanical forces
			4-61	2.5
			4-14	4-6
			4-10	10
KVVP	Copper Conductor, PVC Insulated and Sheathed,Braiding Shielded Control Cable		2-61	0.75-2.5	For laying indoors,in cable trench, pipelines,etc, and somewhere that need fixed installation
			2-14	4-6
			2-10	10
KVVP2	Copper Conductor, PVC Insulated and Sheathed,Coppertape Screened Control Cable		4-61	0.75-2.5	For laying indoors,in cable trench, directly buried pipeline and other fixed occasion,also can bear larger external mechanical forces
			4-14	4-6
			4-10	10
KVVR	Copper Conductor, PVC Insulated and Sheathed,Flexible Control Cable		4-61	0.75-2.5	For laying indoors,where there is a requirement for mobile
KVVRP	Copper Conductor,PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable		4-61	0.75-1.0	For laying indoors, where there is a requirement for mobile screen
KVVRP			4-48	1.5-2.5
Note: the recommended cores:2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52 or 61 cores
