LV Low Voltage XLPE Insulated Cable Copper Conductor PVC Sheathed Non Armoured

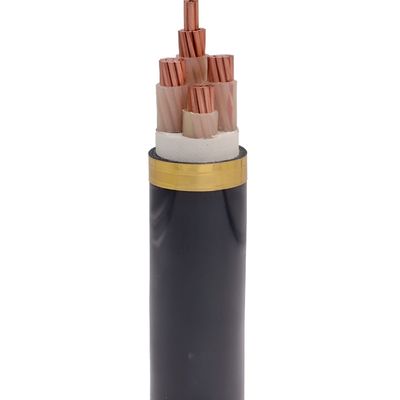

Large Image : LV Low Voltage XLPE Insulated Cable Copper Conductor PVC Sheathed Non Armoured

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,CCC,TUV,CE,VDE
Model Number:	Low Voltage

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Steel Wooden Drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

LV Low Voltage XLPE Insulated Cable Copper Conductor PVC Sheathed Non Armoured

Description

Insulation Material:	XLPE	Application:	Construction
Conductor Material:	Copper	Sheath:	PVC
Cores:	4core	Armour:	Unarmoured
Highlight:	Non Armoured XLPE Insulated Cable , LV Xlpe Insulated PVC Sheathed Cable

XLPE Insulated Low Voltage Cable Copper Conductor PVC Sheathed Non-Armoured

Applications

Machinery & Equipment Wiring – Reliable power transmission for motors, pumps, and control systems.

Temporary Power Supply – Events, construction sites, and portable installations (where mechanical protection is not critical).

XLPE Insulation – Higher thermal resistance (up to 90°C) compared to standard PVC cables.

PVC Sheath – Moisture, abrasion, and chemical resistance for indoor/outdoor use.
Copper Conductor – Excellent conductivity, flexibility, and corrosion resistance.
Non-Armoured (Unarmoured) – Lightweight, cost-effective, and easy to install in conduits, trays, or ducts.

Standards

IEC 60502-1 / BS 5467 / VDE 0276-603 (for XLPE-insulated LV cables).

Suitable for dry, damp, and moderately harsh environments (not recommended for direct burial without additional protection).

Construction

Conductors:plain solid annealed copper

Insulation:Cross-linked Polyethelene (XLPE)

Outer Sheath:Polyvinyl chloride (PVC) or Low Smoke Zero Halogen (LSZH)

Parameter

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor(20℃)	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X1.5	0.7	1.8	12.6	160	12.1	21	30
4X2.5	0.7	1.8	13.6	210	7.41	28	39
4X4	0.7	1.8	14.8	280	4.61	37	51
4X6	0.7	1.8	16.0	380	3.08	47	64
4X10	0.7	1.8	18.6	530	1.83	65	86
4X16	0.7	1.8	21.0	800	1.15	84	110
4X25	0.9	1.8	24.9	1240	0.727	110	140
4X35	0.9	1.8	28.3	1600	0.524	135	170
4X50	1.0	1.8	28.4	2000	0.387	170	205
4X70	1.1	2.0	33.1	2800	0.268	215	250
4X95	1.1	2.1	37.1	4000	0.193	265	300
4X120	1.2	2.2	40.8	5000	0.153	310	345
4X150	1.4	2.4	45.2	6100	0.124	350	385
4X185	1.6	2.6	52.1	7600	0.0991	405	435
4X240	1.7	2.8	57.8	9500	0.0754	480	500
4X300	1.8	3.0	63.5	12000	0.0601	555	565
4X400	2.0	3.3	70.9	16000	0.0470	640	640
