Stranded Copper Conductor Prefabricated Branch Cable For Low Voltage Distribution

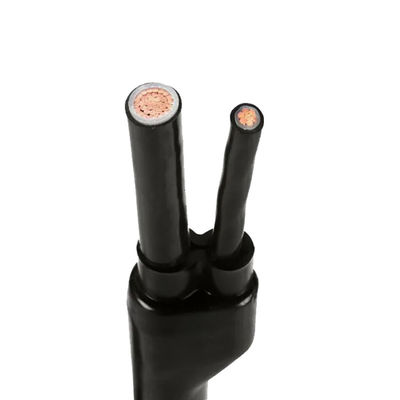

Large Image : Stranded Copper Conductor Prefabricated Branch Cable For Low Voltage Distribution

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,TUV,ISO,CCC
Model Number:	YDF

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	woodern drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100km/week

Contact Now

Stranded Copper Conductor Prefabricated Branch Cable For Low Voltage Distribution

Description

Insulation Colour:	Natural	Sheath Colour:	Black
Voltage Rating:	0.6/1kV	Operating Voltage:	90˚C
Insulated:	XLPE	Sheathed:	PVC
Highlight:	Copper Conductor Prefabricated Branch Cable , Low Voltage Prefabricated Branch Cable

Stranded Copper Conductor Prefabricated Branch Cable For Low Voltage Distribution

Application

Prefab branch cable is a new kind of low voltage distribution products, the prefab style can decrease the labor intensity greatly, shorten worktime, reduce cost greatly. The products is widely used at mid and high building highway, bridges, channels, high level workshop etc with its super performance.

Construction

Plain annealed copper, XLPE insulated, unarmoured, PVC compound sheathed cable

Standards

Our factory has complied with factory standards according to the IEC60502 and JIS376A. The insulation performance is much superior than IEC60502, and the joint is tested according to the standard of GB9732.

Type & Name

Type	Name
YDF-YJV	Copper Conductor XLPE insulated PVC sheathed prefab branch cable
YDF-VV	Copper Conductor PVC insulated PVC sheathed prefab branch cable
YDF-ZR-YJV	Copper Conductor XLPE insulated PVC sheathed flame resistance prefab branch cable
YDF-ZR-VV	Copper Conductor PVC insulated PVC sheathed flame resistance prefab branch cable
YDF-NH-YJV	Copper Conductor XLPE insulated PVC sheathed fire resistance prefab branch cable
YDF-NH-VV	Copper Conductor PVC insulated PVC sheathed fire resistance prefab branch cable
YDF-WL-YJE	Copper Conductor XLPE insulated polyolefine sheathed halogen free low smoke flame resistance prefab branch cable
YDF-WL-EE	Copper Conductor polyolefine insulated PVC sheathed halogen free low smoke flame resistance prefab branch cable
YDF-DL-YJV	Copper Conductor XLPE insulated PVC sheathed low halogen low smoke flame resistance prefab branch cable
YDF-DL-VV	Copper Conductor PVC insulated PVC sheathed low halogen low smoke flame resistance prefab branch cable
