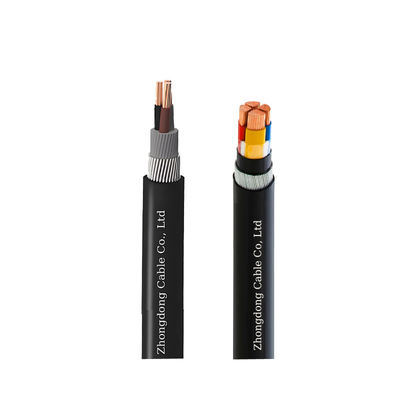

Fire Resistant Low Voltage Wire Cable XLPE Insulation PVC Sheath Steel Wire Armored

Nominal section area

Approx. overall diameter

Approx. weight of cable

Maximum DC resistance of the conductor

mm2

mm

kg/km

Ω/km

Cu

Al

20℃ Cu

20℃ Al

3×1.5 RE

12.4

252.3

–

12.1

–

3×2.5 RE

13.3

300.7

254

7.41

12.1

3×4 RE

15.2

394.5

319.9

4.61

7.41

3×6 RE

16.3

487

375.1

3.08

4.61

3×10 CC

18.5

663.2

476.7

1.83

3.08

3×16 CC

20.7

901.8

603.3

1.15

1.91

3×25 CC

24.1

1250.7

784.3

0.727

1.2

3×35 CC

26.3

1578.1

925.2

0.524

0.868

3×50 SM

25.8

1997.4

1064.7

0.387

0.641

3×70 SM

29

2635.8

1330

0.268

0.443

3×95 SM

34.2

3799.8

2027.6

0.193

0.32

3×120 SM

37.6

4620.3

2381.9

0.153

0.253

3×150 SM

41.9

5661.4

2863.4

0.124

0.206

3×185 SM

46.8

6965.8

3514.9

0.0991

0.164

3×240 SM

52

8782.1

4305.2

0.0754

0.125

3×300 SM

57.3

10747.9

5151.8

0.0601

0.1

4×1.5 RE

13.2

291.1

–

12.1

–

4×2.5 RE

14.2

351.9

289.7

7.41

12.1

4×4 RE

16.3

469

369.5

4.61

7.41

4×6 RE

17.5

586.9

437.7

3.08

4.61

4×10 CC

20

798.9

550.2

1.83

3.08

4×16 CC

22.4

1079.7

681.8

1.15

1.91

4×25 CC

26.3

1549.9

928.1

0.727

1.2

4×35 CC

28.8

1985.4

1114.9

0.524

0.868

4×50 SM

30

2604.6

1361

0.387

0.641

4×70 SM

34.8

3778.7

2037.7

0.268

0.443

4×95 SM

39.1

4920.9

2558.1

0.193

0.32

4×120 SM

41.8

5956.6

2972

0.153

0.253

4×150 SM

46.9

7418.1

3687.3

0.124

0.206

4×185 SM

52.5

9021.2

4419.9

0.0991

0.164

4×240 SM

57.5

11374.5

5405.2

0.0754

0.125

4×300 SM

63.2

13951.3

6489.8

0.0601

0.1
