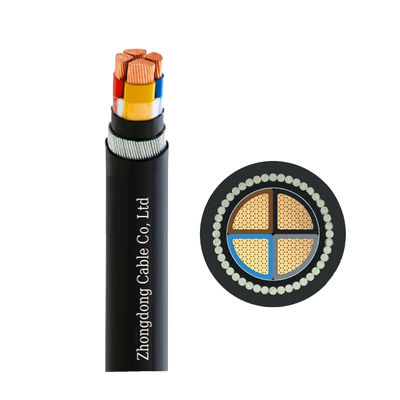

SWA Steel Wire Armored Low Voltage Cable Copper Conductor XLPE Insulted 0.6/1 KV

Large Image : SWA Steel Wire Armored Low Voltage Cable Copper Conductor XLPE Insulted 0.6/1 KV

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,CCC,ISO

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Iron-wooden Drum or Whole Wooden Drum
Delivery Time:	7-30 days based on different Qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

SWA Steel Wire Armored Low Voltage Cable Copper Conductor XLPE Insulted 0.6/1 KV

Description

Voltage:	600V, 1000V	Standard:	IEC60502-1
Feature:	LSZH	Conductor:	Copper Or Aluminium
Type:	XLPE Insulated, PVC Sheath, PVC Jacket	Armour:	Steel Wire
Highlight:	Steel Wire Armored Low Voltage Cable , 1 KV Low Voltage Armored Cable

SWA Steel Wire Armored Low Voltage Cable Copper Conductor XLPE Insulted 0.6/1 KV

‌Application

SWA Armoured Cable for use in power networks ,undergrand,outdoor ,and indoor applications and for use in cable ducting. Suitable for use in power distribution lines with rated voltage 0.6/1KV. For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.

Construction

Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
Insulation:XLPE
Filler: Non-hygroscopic material
Inner sheath: PVC
Armouring: Steel Wire
Outer Sheath PVC

Specification

Specification	Outer diameter of conductor	Nominal sheath thickness	Approx. outer diameter of cable	Approx. weight of cable
mm2	mm	mm	mm	kg/km
				CU	AL
4X4 RE	2.24	1.8	19.1	770	670
4X6 RE	2.76	1.8	20.3	916	772
4X10 CC	3.8	1.8	22.3	1148	895
4X16 CC	4.8	1.8	24.5	1472	1070
4X25 CC	6	1.8	27.5	1942	1317
4X35 CC	7	1.8	29.5	2386	1521
4X50 SM	8	1.9	32.9	3209	2036
4X70 SM	9.5	2.1	36.7	4197	2502
4X95 SM	11	2.3	40.5	5362	3016
4X120 SM	12.4	2.4	45.3	6908	3940
4X150 SM	13.8	2.6	50	8327	4683
4X185 SM	15.4	2.7	54.2	10044	5466
4X240 SM	17.5	2.9	60.4	12672	6666
4X300 SM	19.6	3.1	65.7	15302	7795
