600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire

Large Image : 600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,CCC,ISO

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Iron-wooden Drum or Whole Wooden Drum
Delivery Time:	7-30 days based on different Qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire

Description

Voltage:	600V, 1000V	Standard:	IEC60502-1
Feature:	LSZH	Conductor:	Copper Or Aluminium
Type:	XLPE Insulated, PVC Sheath, PVC Jacket	Armour:	Steel Wire
Highlight:	600V Low Voltage Electrical Wire , 1000V Underground Low Voltage Cable

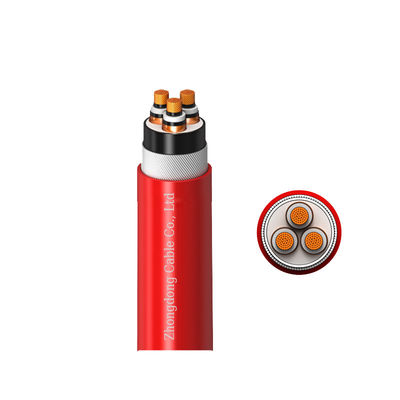

0.6/1kv LV Low Voltage Cable for Underground Use CU/XLPE/SWA/PVC

‌Application

Suitable for use in power distribution lines with rated voltage 0.6/1KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and moderate pulling force.

Construction

Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
Insulation:XLPE
Filler: Non-hygroscopic material
Inner sheath: PVC
Armouring: Steel Wire
Outer Sheath PVC

Specification

Specification	Outer diameter of conductor	Nominal sheath thickness	Approx. outer diameter of cable	Approx. weight of cable
mm2	mm	mm	mm	kg/km
3X4 RE	2.24	1.8	17.1	621
3X6 RE	2.76	1.8	17.8	700
3X10 CC	3.8	1.8	19.5	885
3X16 CC	4.8	1.8	21.5	1141
3X25 CC	6	1.8	26.6	1670
3X35 CC	7	1.8	28.8	2033
3X50 SM	8	1.8	31.8	2513
3X70 SM	9.5	2	36.1	3502
3X95 SM	11	2.2	39.4	4392
3X120 SM	12.4	2.3	42.4	5258
3X150 SM	13.8	2.4	46.9	6706
3X185 SM	15.4	2.6	51.5	8104
3X240 SM	17.5	2.7	56.1	10062
3X300 SM	19.6	2.9	60.6	12082

Delivery

1. Ocean Freight

2. Air Freight

3. International Rail Freight

4. International Road Freight

5. Multimodal Transport

6. Express/Cross-border Logistics
