1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable

1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable
1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable
1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable 1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable

Large Image :  1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,CCC,ISO
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Iron-wooden Drum or Whole Wooden Drum
Delivery Time: 7-30 days based on different Qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable

Description
Voltage: 600V, 1000V Standard: IEC60502-1
Feature: LSZH Conductor: Copper Or Aluminium
Type: XLPE Insulated, PVC Sheath, PVC Jacket Armour: Steel Wire
Highlight:

Low Voltage Power Cable 1x70sqmm

,

IEC60502-1 Low Voltage Power Cable

,

IEC60502-1 LV Cable

1kv CU/XLPE/PVC Low Voltage Power Cable 1x70sqmm IEC60502-1


‌Application


1kv CU/XLPE/PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 UNE 21123 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

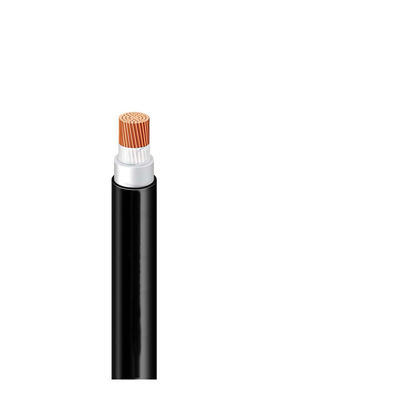

Construction


  1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation:XLPE
  3. Filler: Non-hygroscopic material
  4. Inner sheath: PVC
  5. Armouring: Steel Wire
  6. Outer Sheath PVC


Specification


Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm²

mm

mm

mm

mm

Kg/Km

1x1.5

1.6

0.7

1.4

6.0

50

1x2.5

2.0

0.7

1.4

6.5

70

1x4

2.25

0.7

1.4

7.0

80

1x6

2.76

0.7

1.4

7.5

110

1x10

4.0

0.7

1.4

8.5

150

1x16

5.0

0.7

1.4

9.5

215

1x25

6.3

0.9

1.4

11.5

315

1x35

7.4

0.9

1.4

12.0

415

1x50

8.8

1.0

1.4

13.0

555

1x70

10.6

1.1

1.4

15.0

760

1x95

12.4

1.1

1.5

17.0

1025

1x120

14.0

1.2

1.5

18.5

1270

1x150

15 .5

1.4

1.6

21.5

1575

1x185

17.4

1.6

1.6

23.0

1955

1x240

20.3

1.7

1.7

26.0

2470

1x300

22.7

1.8

1.8

28.0

3155

1x400

25.4

2.0

1.9

32.0

4049



Application Scenarios


1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable 01kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable 1
