THW Electrical Cable Wire Awg 14 12 10 8 6 BVR Copper Conductor Low Voltage

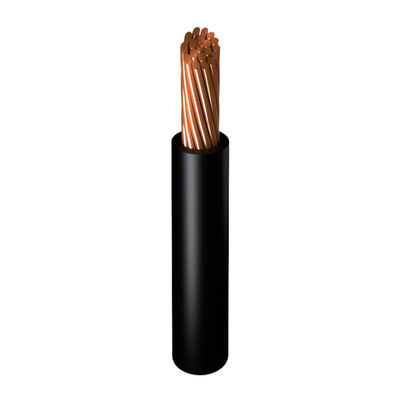

Large Image : THW Electrical Cable Wire Awg 14 12 10 8 6 BVR Copper Conductor Low Voltage

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CE,TUV,CCC,UL
Model Number:	BV

Payment & Shipping Terms:

Minimum Order Quantity:	100m
Price:	Negotiable
Packaging Details:	Steel Wooden Drum
Delivery Time:	10Days
Payment Terms:	T/T,L/C
Supply Ability:	100KM/WEEK

Contact Now

THW Electrical Cable Wire Awg 14 12 10 8 6 BVR Copper Conductor Low Voltage

Description

Rated Voltag:	450/750V	Insulation:	PVC
Standard:	VED/CE/CCC	Core:	1 Core
Colors:	Customized Colors	Conductor Material:	Copper
Highlight:	Low Voltage Electrical Cable Wire , Low Voltage Electrical Cable Wire

THW Electrical Wire Awg 14 12 10 8 6 BVR Copper Conductor Low Voltage

Description

Single-conductor PVC-insulated building wire is rated for 600V. THW-type wires (rated 75°C) are suitable for both dry and wet indoor installations, complying with standard electrical wiring codes.

Applications

Fixed indoor wiring (lights, sockets, switches)

Dry environments (concealed in walls, conduits, or trunking)

Rated 450/750V with 70°C temperature resistance

Solid copper conductor for stable connections

Construction

THW-type conductors feature either solid or stranded soft-drawn copper, coated with a moisture- and heat-resistant PVC thermoplastic insulation. Available in multiple colors (size-dependent) and packaging options.

parameter

CROSS
SECTION
AREA

STRANDING
No. of Wire x Diameter.

INSULATION

THICKNESS

EXTERNAL
DIAMETER

TOTAL
WEIGHT

AMPACITY
for 1 Conductor
in Free Air

AMPACITY
for 3 Conductors
in Conduit

AWG OR
MCM

mm2

mm.

Kg/Km

Amp.

0,52

1 x 0.813

0,76

2,33

9,81

0,82

1 x 1,02

0,76

2,54

13,16

1,31

1 x 1,29

0,76

2,81

18,10

2,08

1 x 1,63

0,76

3,15

26,10

3,31

1 x 2,05

0,76

3,57

38,30

5,26

1 x 2,59

0,76

4,11

57,40

8,34

1 x 3,26

1,14

5,54

95,20

2,08

7 x 0,62

0,76

3,38

27,80

3,31

7 x 0,78

0,76

3,86

40,10

5,26

7 x 0,98

0,76

4,46

59,90

8,37

7 x 1,23

1,14

5,97

105,20

13,30

7 x 1,55

1,52

7,69

170,40

21,15

7 x 1,96

1,52

8,92

255,50

105

33,62

7 x 2,47

1,52

10,45

388,90

140

42,36

7 x 2,78

2,03

12,40

482,90

165

110

1/0

53,49

19 x 1,89

2,03

13,51

621,00

195

125

2/0

67,43

19 x 2,12

2,03

14,66

778,00

225

145

3/0

85,01

19 x 2,39

2,03

16,01

934,00

260

165

4/0

107,20

19 x 2,68

2,03

17,46

1159,00

300

195

250

127,00

37 x 2,09

2,41

19,45

1368,00

340

215

300

152,00

37 x 2,29

2,41

20,85

1623,00

375

240

350

177,00

37 x 2,47

2,41

22,11

1876,00

420

260

400

203,00

37 x 2,64

2,41

23,30

2128,00

455

280

500

253,00

37 x 2,95

2,41

25,47

2631,00

515

320

600

304,00

37 x 3,23

2,79

28,19

3174,00

575

355

650

329,00

37 x 3,37

2,79

29,17

3345,00

600

370

700

355,00

37 x 3,49

2,79

30,01

3609,00

630

385
