Flexible Copper Electrical Cable Low Voltage BVR 1.5m 10mm PVC Insulation

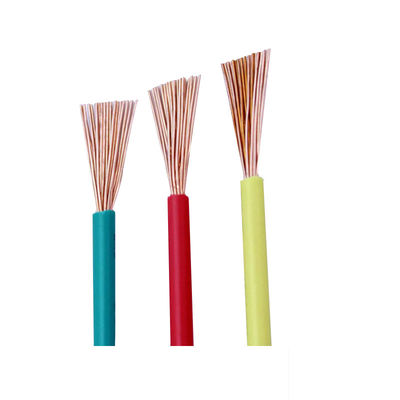

Large Image : Flexible Copper Electrical Cable Low Voltage BVR 1.5m 10mm PVC Insulation

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CE,TUV,CCC,UL
Model Number:	BVR

Payment & Shipping Terms:

Minimum Order Quantity:	100m
Price:	Negotiable
Packaging Details:	Steel Wooden Drum
Delivery Time:	10Days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM/WEEK

Contact Now

Flexible Copper Electrical Cable Low Voltage BVR 1.5m 10mm PVC Insulation

Description

Rated Voltag:	450/750V	Insulation:	PVC
Temperature:	70°C Max	Insulation Thickness:	0.6mm ~ 1.4mm
Conductor Size:	0.75mm² To 35mm²	Conductor Material:	Copper
Highlight:	Copper Electrical Cable Low Voltage , 10mm PVC Insulation Electrical Cable

Flexible Copper Electrical Wire Low Voltage BVR 1.5mm,10mm

Description

BVR cable (Flexible PVC-Insulated Copper Building Wire) is widely used in electrical installations due to its stranded copper conductor and PVC insulation.

Applications

Residential Wiring: Sockets, switches, and lighting circuits.
Commercial Use: Lighting fixtures, control panels.
Industrial Control: Low-voltage internal wiring for equipment.

Features

High Flexibility: Stranded copper for easy bending and tight-space installation (e.g., conduits, concealed wiring).
Safety: Flame-retardant PVC insulation, compliant with GB/T 5023 (optional IEC 60332 flame-retardant grade).
Easy Installation: Better contact stability than solid-core BV cables.

parameter

Current-Carrying Capacity (70°C Ambient)

Cross-Section (mm²)	Current (A)	Typical Applications
0.75	6-8	Small lighting, signal circuits
1.5	10-14	Sockets, household appliances
2.5	16-25	Air conditioners, high-power devices
4	25-32	Sub-circuits, small distribution boxes
6	32-40	Main supply lines, distribution panels
