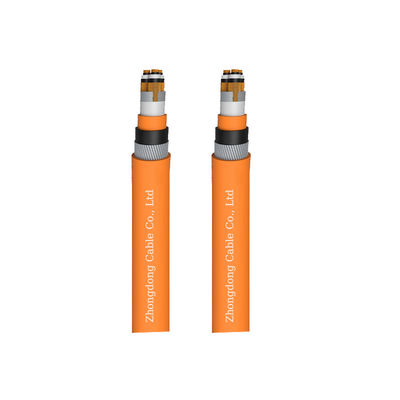

3 Core Screened Medium Voltage Power Cables With PVC Sheathed Stranded Conductors

3 core Screened Medium Voltage Cable with PVC Sheathed Stranded Conductors

Application

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals,in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Construction

Stranded compacted conductor, triple extruded conductor screen, insulation and insulation screen, copper wire screened, laid-up, PVC bedded, steel wire armoured, PVC sheathed.

Feature

1. The product is suitable for power transmission and distribution lines with rated power frequency voltage 6/11kV.
2. The ambient temperature for installation:≥0℃
3. Maximum conductor temperature in normal operation:≤90℃
4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃

Parameter
