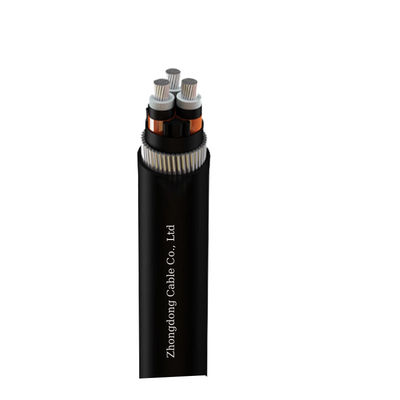

Armored SWA 35KV MV Medium Voltage Cable XLPE Insulated Three Core Steel Wire Screen

Large Image : Armored SWA 35KV MV Medium Voltage Cable XLPE Insulated Three Core Steel Wire Screen

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,VDE,TUV
Model Number:	Medium Voltage

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10Work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Armored SWA 35KV MV Medium Voltage Cable XLPE Insulated Three Core Steel Wire Screen

Description

Conductor Material:	Copper	Insulation Material:	XLPE
Jacket:	PVC	Cores:	3 Cores
Screen:	Copper Wire	Rated Voltage:	35 KV
Highlight:	Medium Voltage Cable XLPE Insulated , Armored SWA 35kv MV Cable , Armored SWA Medium Voltage Cable

Steel Wire Armored SWA 35KV Medium Voltage Cable XLPE Insulated Three Core

Construction

Stranded compacted conductor, triple extruded conductor screen, insulation and insulation screen, copper wire screened, laid-up, PVC bedded, steel wire armoured, PVC sheathed.

Application

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Feature

The product is suitable for power transmission and distribution lines with rated power frequency voltage 26/35kV.
The ambient temperature for installation:≥0℃
Maximum conductor temperature in normal operation:≤90℃
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃

Specifications

Specification	Outer diameter	Approx. outer diameter of cable	Approx. weight of cable		Max. D.C. resistance of conductor at 20℃
mm2	mm	mm	kg/km		Ω/km
			Cu	Al	Cu	Al
1×50	8.4	39.4	2331	2116	0.387	0.641
1×70	10	41	2680	2325	0.268	0.443
1×95	11.5	43.8	2981	2482	0.193	0.32
1×120	13	45.8	3487	2867	0.153	0.253
1×150	14.5	46.8	3870	3055	0.124	0.206
1×185	16.2	49.1	4420	3370	0.0991	0.164
1×240	18.4	51.1	4981	3676	0.0754	0.125
1×300	20.5	53.2	5661	3971	0.0601	0.1
1×400	23.5	56.3	6865	4550	0.047	0.0778
1×500	26.5	60.5	8370	5367	0.0366	0.0605
1×630	30	64.4	10067	6178	0.0283	0.0469
