PV1-F 0.6KV 1.0KV Solar Power Cable XLPO Sheath For Sustainable Energy Solar Panel

Large Image : PV1-F 0.6KV 1.0KV Solar Power Cable XLPO Sheath For Sustainable Energy Solar Panel

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO
Model Number:	PV1-F

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	woodern drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	500KM/Week

Contact Now

PV1-F 0.6KV 1.0KV Solar Power Cable XLPO Sheath For Sustainable Energy Solar Panel

Description

Insulation Material:	Xlpe	Jacket:	XLPO
Conductor Material:	Class 5 Tinned Copper	Nominal Voltage:	DC 1.0KV AC 0.6/1.0KV
Core:	1 Core	Application:	Solar Panel
Highlight:	XLPO Sheath Solar Power Cable , 1.0KV Solar Power Cable , 0.6KV Solar Panel Power Cable

PV1-F 0.6/1.0KV Solar Cable XLPO Sheath for Sustainable Energy Solar Panel

Applications

PV1-F solar photovoltaic (PV) cables are specifically designed for connecting solar panels and components in photovoltaic power generation systems

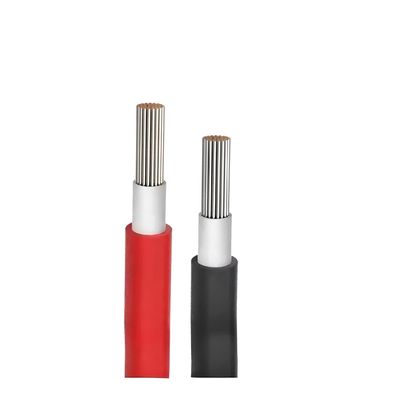

PV1-F 0.6KV 1.0KV Solar Power Cable XLPO Sheath For Sustainable Energy Solar Panel 0

Structure

Conductor: Tinned copper (single-core, Class 5 flexible stranded wire).
Insulation: PVC (Polyvinyl Chloride) – Provides electrical insulation and mechanical protection.
Jacket: XLPO

Features

UV & Weather Resistant – Designed for outdoor use.
Halogen-Free Options (PV1-F-0) – Available for enhanced safety (low smoke, no toxic fumes).
Temperature Range: -40°C to +90°C (short-term up to +120°C).
Voltage Rating: Typically 450/750V (for low-voltage applications).
Flexibility: Highly flexible due to fine-stranded conductors, suitable for dynamic applications.
Standards: Complies with EN 50618 (EU), IEC 62930, and TÜV certifications (for solar applications).

parameter

1	2	3	4	5
Number and nominal sectional area of conductors	Thickness of insulation	Thickness of sheath	Maximum resistance of conductor at 20℃	Current carrying capacity
mm²	mm	mm	Ω/km	A
1x1.5	0.7	0.8	13.7	30
1x2.5	0.7	0.8	8.21	41
1x4	0.7	0.8	5.09	55
1x6	0.7	0.8	3.39	70
1x10	0.7	0.8	1.95	98
1x16	0.7	0.9	1.24	132
1x25	0.9	1.0	0.795	176
1x35	0.9	1.1	0.565	218
1x50	1.0	1.2	0.393	276
1x70	1.1	1.2	0.277	347
1x95	1.1	1.3	0.210	416
1x120	1.2	1.3	0.164	488
1x150	1.4	1.4	0.132	566
1x185	1.6	1.6	0.108	644
1x240	1.7	1.7	0.817	775
