Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable 3+1 Unarmoured

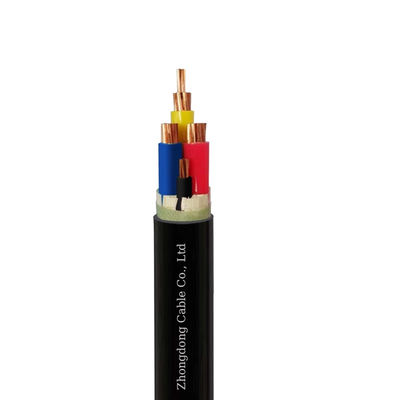

Large Image : Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable 3+1 Unarmoured

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable 3+1 Unarmoured

Description

Model:	XLPE Insulated	Conductor Material:	Copper Or Al-alloy
Insulation Material:	PVC/XLPE	Jacket Color:	As Required
Jacket:	PVC/LSZH/LSOH	Voltage:	0.6/1kV
Highlight:	Fire Proof XLPE Insulated Power Cable , XLPE Unarmoured Cable 3 Core

Fire Proof XLPE Insulated Power Cable 3 Core And Earth Cable 3+1 Unarmoured

Application

XLPE Insulatied Power Cable 3 core with earth cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Construction

Conductor: Plain Annealed copper conductor or Al-Alloy
Mica tape:Each individual conductor is wrapped mica tape which can withstand the flame temperature up to 1100 °C.
Insulation:Cross-linked polyethylene (XLPE)
Sheath:Fire resistant PVC outer sheath

Specification

No.cores x cross-sec.	Insulation thickness		Nominal Sheath thickness	Outer Ø approx.	weight approx.	Current ratings in air 30℃	Current ratings buried 20℃
No.cores x cross-sec.	Phase	Neutral	Nominal Sheath thickness	Outer Ø approx.	weight approx.	Current ratings in air 30℃	Current ratings buried 20℃
mm²	mm	mm	mm	mm	kg / km	A	A
3×4＋1×2.5	0.7	0.7	1.8	12.7	277	37	47
3×6＋1×4.0	0.7	0.7	1.8	13.9	363	47	60
3×10＋1×6.0	0.7	0.7	1.8	16.1	527	64	81
3×16＋1×10	0.7	0.7	1.8	18.6	766	85	106
3×25＋1×16	0.9	0.7	1.8	22.2	1140	113	137
3×35＋1×16	0.9	0.7	1.8	24.6	1475	139	164
3×50＋1×25	1.0	0.9	1.8	27.7	1951	173	198
3×70＋1×35	1.1	0.9	1.9	31.9	2662	222	246
3×95＋1×50	1.1	1.0	2.1	36.2	3578	271	293
3×120＋1×70	1.2	1.1	2.2	39.9	4567	318	334
3×150＋1×70	1.4	1.1	2.3	45.0	5514	370	375
3×185＋1×95	1.6	1.1	2.5	49.4	6850	427	422
3×240+1×120	1.7	1.2	2.7	54.9	8741	507	492
3×300＋1×150	1.8	1.4	2.9	62.9	11052	599	560
