UV Resistant Copper Core PV Solar Cable XLPO Jacket Solar Panel Cable Wire

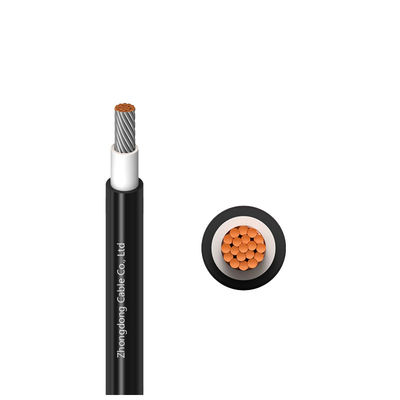

Large Image : UV Resistant Copper Core PV Solar Cable XLPO Jacket Solar Panel Cable Wire

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO
Model Number:	H1Z2Z2-K

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	woodern drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	500KM/Week

Contact Now

UV Resistant Copper Core PV Solar Cable XLPO Jacket Solar Panel Cable Wire

Description

Insulation Material:	Xlpe	Jacket:	XLPO
Conductor Material:	Class 5 Tinned Copper	Application:	Construction
Core:	1 Core	Colour:	Black /Other Colours Available On Request
Highlight:	UV Resistant PV Solar Cable , XLPO Jacket Solar Panel Cable Wire

UV Resistant Copper Core Solar Cable XLPO Jacket Solar Photovoltaic Pv Cable

Description

Photovoltaic cable power cables AC0.6/1kV(DC1.8KV)
High temperature and UV radiation resistance, long lifespan and reliability

Structure

Conductor: Tinned copper, offering excellent conductivity and corrosion resistance.
Insulation: Cross-linked polyethylene (XLPO) or similar material, providing high thermal and mechanical resistance.
Sheath: Halogen-free, flame-retardant material, ensuring safety and environmental compliance.

Applications

Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.

Electrical Characteristics

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Insulation thickness	Nominal Sheath thickness	Nominal Overall diameter	Nominal Cable weight	Max.Resistance of conductor at 20ºC	Current Carrying Capacity
PV Single core Solar cable
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)	A
1 x 1,5	30 x 0,25	0,8	0,8	4.8	38	13,7	30
1 x 2,5	50 x 0,25	0,85	0,9	5.4	46	8,21	41
1 x 4	56 x 0,30	0,85	1,0	6.1	61	5,09	55
1 x 6	84 x 0,30	0,9	1,1	7.0	90	3,39	70
1 x 10	80 x 0,40	0,9	1,2	8.2	131	1,95	98
1 x 16	128 x 0,40	0,9	1,2	9.3	187	1,24	132
1 x 25	200 x 0,40	0,9	1,2	10.7	278	0,795	176
1 x 35	280 x 0,40	0,9	1,2	12.4	374	0,565	218
PV Twin core Solar cable
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)	A
2 x 1,5	30 x 0,25	0,8	0,8	4.8x9.6	76	13,7	30
2 x 2,5	50 x 0,25	0,85	0,9	5.4x10.8	92	8,21	41
2 x 4	56 x 0,30	0,85	1,0	6.1x12.2	122	5,09	55
2x 6	84 x 0,30	0,9	1,1	7.0x14.0	180	3,39	70
2x 10	80 x 0,40	0,9	1,2	8.2x16.4	262	1,95	98
2 x 16	128 x 0,40	0,9	1,2	9.3x18.6	374	1,24	132
2 x 25	200 x 0,40	0,9	1,2	10.7x21.4	556	0,795	176
2x 35	280 x 0,40	0,9	1,2	12.4x24.8	748	0,565	218
