XLPE Insulated Solar Cable Electric PV Solar Panel Wire 1.5MM 2.5MM PV1-F

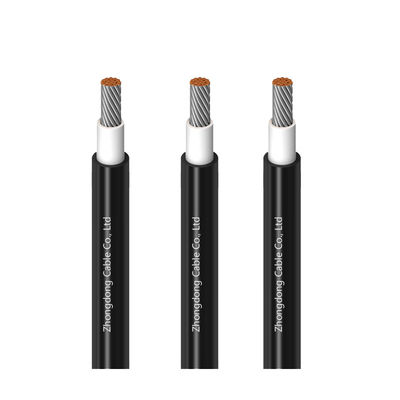

Large Image : XLPE Insulated Solar Cable Electric PV Solar Panel Wire 1.5MM 2.5MM PV1-F

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Model Number:	PV1-F

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Steel wooden drum, Coil In Foil / Drum
Delivery Time:	7-30 days
Payment Terms:	T/T,L/C
Supply Ability:	100KM/Week

Contact Now

XLPE Insulated Solar Cable Electric PV Solar Panel Wire 1.5MM 2.5MM PV1-F

Description

Uv Resistance:	Yes	Insulation Material:	Cross-linked Polyethylene (XLPE)
Certifications:	TUV, UL, CE	Conductor Material:	Tinned Copper
Halogen Free:	Yes	Application:	Solar Power Systems
Highlight:	XLPE Insulated Solar Cable PV1-F , Solar Panel Wire 1.5MM

XLPE Insulated Solar Cable Electric PV Wire 1.5MM 2.5MM PV1-F

Application

Solar cables are the designated cable used for rooftop PV installations. They are suitable for free hanging, movable, fixed installation and buried in ground in constructional covered systems indoor, outdoor or in hazard explosion areas, in industry and agriculture.

Cable performance

Properties such as moisture and heat resistance, high and low temperature resistance, acid and alkali resistance,ozone resistance, UV resistance, flame retardancy, etc

Description

AC rated voltage(U0/U):0.6/1.0kV
DC rated volate(U0):1.8kV
Minimum bending radius: Φ ≦ 12mm:3XD Φ > 12mm:4XD
Maximum Voltage: Ambient Temperature: -40℃ ℃~ +90℃
Short Circuit Temperature: 200℃/5 sec

Thermal Properties:

Maximum Voltage: Ambient Temperature: -40ºC ~ +90ºC
Maximum Temperature at Conductor: 120ºC (20000h) according to IEC/EN 60216-1
Short Circuit Temperature: 200ºC/5 seconds
Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)
High Temperature Pressure Test: According to EN 60811-3-1
Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity

Specifications

Cross section(mm²)	Conductor Construction(no/mm)	Conductor Stranded OD.max(mm)	Cable OD.(mm)	Approximate weight of cable kg/km	Max Cond Resistance(Ω/km,20°C)
1×1.5	48/0.20	1.58	4.8	35	13.7
1×2.5	77/0.20	2.02	5.2	47	8.21
1×4	56/0.285	2.46	5.7	64	5.09
1×6	84/0.285	3.01	6.3	86	3.39
1×10	77/0.40	4.1	7.2	128	1.95
1×16	7×17/0.40	5.5	8.9	196	1.24
1×25	7×27/0.40	6.7	10.7	299	0.795
1×35	7×38/0.40	8.2	12.4	407	0.565
1×50	19×20/0.40	10.0	14.6	571	0.393
1×70	19×28/0.40	11.6	16.4	773	0.277
1×95	19×38/0.40	13.5	18.5	1024	0.210
1×120	24×38/0.40	14.4	19.8	1266	0.164
1×150	30×38/0.40	16.2	22.2	1584	0.132
1×185	37×38/0.40	18.2	25.0	1967	0.108
1×240	48×38/0.40	20.6	27.8	2518	0.0817
