Copper Conductor N2X2y XLPE Power Cable , LV XLPE Insulated Cable UV Resistant

Application

Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fi xed installation underground, in interior premises, cable ducts, in the open air and in water – as permitted by the local building regulations – under severe mechanical stress during installation and operation.

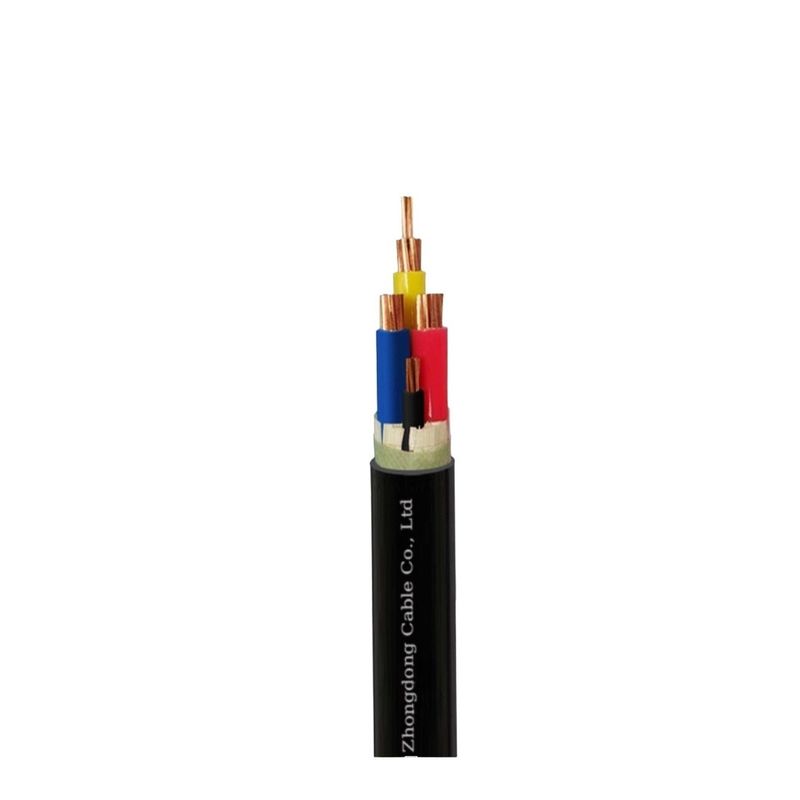

Construction

1. Copper conductor, round stranded (RM), resp. sector-shaped stranded (SM)
2. Core insulation (XLPE)
3. Inner covering (EPDM)
4. Sheath (HDPE black, UV resistant)

Description

1. Standard: DIN VDE 0276-603 (HD 603)
2. Rated voltage: 0.6/1 kV
3. Test voltage: 4 kV/50 Hz
4. laying temperature: min. -20 °C
5. operating temperature: -50 °C up to +90 °C
6. conductor temperature: max. +90 °C
7. short-circuit temperature: max. +250 °C/5 s
8. Bending radius (min. ): 12 x of cable

Tecnical Data
