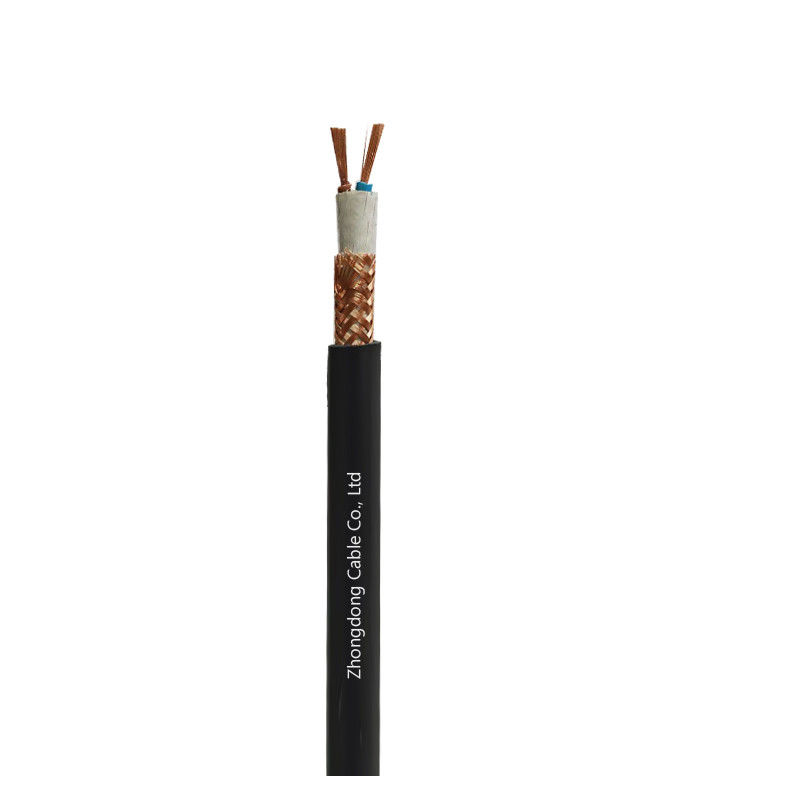

Copper Tape Screen Steel Tape Armoured Control Cable PVC Insulated And Sheathed

Copper Tape Screen Steel Tape Armoured Control Cable PVC Insulated And Sheathed
Copper Tape Screen Steel Tape Armoured Control Cable PVC Insulated And Sheathed

Large Image :  Copper Tape Screen Steel Tape Armoured Control Cable PVC Insulated And Sheathed

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,ISO,CE,TUV
Model Number: KVV,KVVP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Steel wooden drum
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Copper Tape Screen Steel Tape Armoured Control Cable PVC Insulated And Sheathed

Description
Model Number: Control Cable Conductor Material: Copper
Nsulation Material: PVC Voltage Rating: 300/500 V
Insulation Material: PVC Cores No.: 2 To 61
Highlight:

Steel Tape Armoured Control Cable

,

Copper Tape Screen Armoured Control Cable

Copper Tape Screen Steel Tape Armoured Control Cables PVC Insulated and Sheathed



Application



Widely used for communication interface in data acquisition and Control applications for Doorbel, household, hotel and so on. Multicore ( 2,4, 8 Insulation Core) Stranded Copper Conductor / PVC or HDPE Insulated / Copper Wire Braided Shield / Audio Control Cable





Construction



  1. Type: 1Pair, 2Pair,4pair
  2. Conductor: Annealed copper or Tinned copper
  3. Conductor Type: Stranded, or Flexible
  4. Insulation:PVC or HDPE
  5. Shielding: Tinned copper wire braided and Aluminum foil layer
  6. Sheathing:PVC , ROHS PVC





Specification





KVV Control Cable
Nominal Section
(m㎡)
Insulation Nominal
Thickness (mm)
Sheath Nominal Thickness (mm)
Maximum DC Resistance Value at 20 ℃ (Ω/KM)
Approximate Outer Diameter (mm)
Cable Approx Weight
(KG/KM)
2*0.75
0.6
1.2
24.5
7.3
63.4
3*0.75
0.6
1.2
24.5
7.7
72.7
5*0.75
0.6
1.2
24.5
8.9
104.7
7*0.75
0.6
1.2
24.5
9.5
129.5
2*1.0
0.6
1.2
18.1
7.7
71.0
3*1.0
0.6
1.2
18.1
8.0
83.3
5*1.0
0.6
1.2
18.1
9.3
121.6
7*1.0
0.6
1.2
18.1
10.0
152.3
2*1.5
0.7
1.2
12.1
8.6
89.3
10*1.5
0.7
1.5
12.1
14.7
303.9
16*1.5
0.7
1.5
12.1
16.7
444.8
24*1.5
0.7
1.7
12.1
20.7
653.8
37*1.5
0.7
1.7
12.1
23.5
946.6
4*2.5
0.8
1.2
7.41
11.2
200.0
30*2.5
0.8
1.7
7.41
25.7
1175.3
5*4
0.8
1.5
4.61
14.0
343.0
12*4
0.8
1.7
4.61
20.0
719.5
8*6
0.8
1.5
3.08
18.0
663.7
14*6
0.8
1.7
3.08
23.1
1131.9
5*10
1.0
1.5
1.83
19.9
722.9
10*10
1.0
1.7
1.83
28.2
1378.1





Tag:

Multicore Control Cable,

Flexible Control Cable,

Industrial Control Cable
