Flame Retardant PVC Sheathed Control Cables Steel Tape Armoured Cable Customized

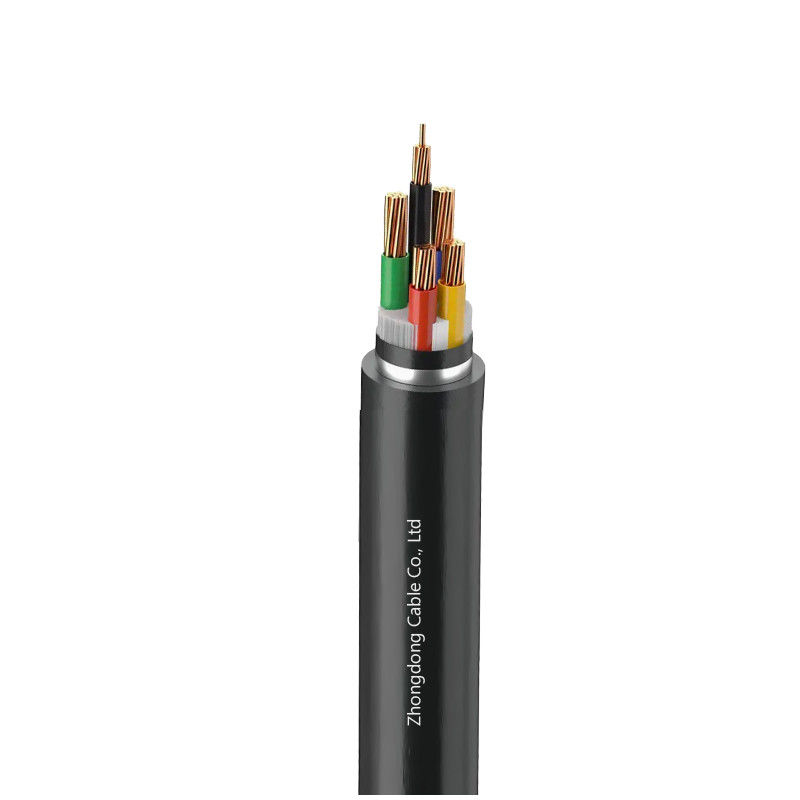

Large Image : Flame Retardant PVC Sheathed Control Cables Steel Tape Armoured Cable Customized

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Flame Retardant PVC Sheathed Control Cables Steel Tape Armoured Cable Customized

Description

Usage:	Access Control System	Insulation:	XLPE PE PVC
Voltage:	300/500V ,450/750V	Length:	Customized
Conductor Material:	Copper	Packing:	Neutral Carton Packing Or Customized
Highlight:	PVC Sheathed Control Cables , Flame Retardant Control Cables Customized

Flame Retardant PVC Sheathed Control Cables Steel Tape Armoured Cable

Application

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.

Construction

Conductor: Solid or Stranded Copper Conductor
Insualtion: XLPE
Inner Sheath: PVC
Armor: Steel Tape
Sheath: Flame Retardant PVC

Description

Rated voltage 450/750V or less,The control cable can be made as flame retardant when customer required.
Laying Temperature:during laying environment temperature shall not be less than 0℃,the cable should be preheated.
Operating Temperature:max permissible continuous operating temperature of conductor shall not exceed 70℃.
Bending Radius:16D for armored cable

Product range

Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Steel Tape mm	Thickness of Sheath mm	Overall Diameter mm		Min resistance of insulation at 70ºC MΩ/km	Max.D.C resistance of at 20ºC MΩ/km	Approx Weight (kg/km)
Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Steel Tape mm	Thickness of Sheath mm	min	max	Min resistance of insulation at 70ºC MΩ/km	Max.D.C resistance of at 20ºC MΩ/km	Approx Weight (kg/km)
4x2.5	0.8	2x0.2(0.3)	1.5	13.4	16.1	0.001	7.41	450
4x4	0.8	2x0.2(0.3)	1.5	14.4	17.4	0.0085	4.61	505
4x6	0.8	2x0.2(0.3)	1.5	15.6	18.8	0.007	3.08	619
4x10	1	2x0.2(0.3)	1.7	19.4	23.5	0.0065	1.83	947
5x2.5	0.8	2x0.2(0.3)	1.5	14.3	17.2	0.001	7.41	506
5x4	0.8	2x0.2(0.3)	1.5	15.4	18.6	0.0085	4.61	586
5x6	0.8	2x0.2(0.3)	1.7	16.7	20.2	0.007	3.08	737
5x10	1	2x0.2(0.3)	1.7	21	25.4	0.0065	1.83	1125
7x0.75	0.6	2x0.2(0.3)	1.5	11.8	14.2	0.012	24.5	317
7x1.0	0.6	2x0.2(0.3)	1.5	12.2	14.7	0.011	18.1	425
7x2.5	0.7	2x0.2(0.3)	1.5	13.5	16.3	0.01	7.41	554
7x4	0.8	2x0.2(0.3)	1.5	15.2	18.4	0.0085	4.61	701
7x6	0.8	2x0.2(0.3)	1.7	18	21.7	0.007	3.08	900
7x10	1	2x0.2(0.3)	1.7	22.7	27.4	0.0065	1.83	1397
10x0.75	0.6	2x0.2(0.3)	1.5	13.8	16.7	0.012	24.5	449
10x1	0.6	2x0.2(0.3)	1.5	14.4	17.4	0.011	18.1	558
10x1.5	0.7	2x0.2(0.3)	1.5	16.1	19.5	0.011	12.1	753
10x2.5	0.8	2x0.2(0.3)	1.7	18.8	22.7	0.01	7.41	956
10x4	0.8	2x0.2(0.3)	1.7	20.5	24.8	0.0085	4.61	1203
10x6	0.8	2x0.2(0.3)	1.7	22.5	27.1	0.007	3.08	1534
