CU XLPE STA PVC MV Underground Cable IEC Standard 18/30kV Medium Voltage Wire

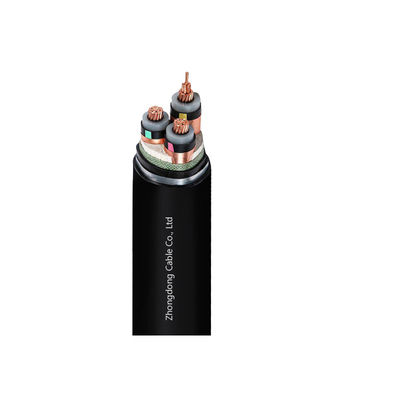

Large Image : CU XLPE STA PVC MV Underground Cable IEC Standard 18/30kV Medium Voltage Wire

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,CE,IEC,TUV
Model Number:	YJV32

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

CU XLPE STA PVC MV Underground Cable IEC Standard 18/30kV Medium Voltage Wire

Description

Insulation Material:	Xlpe	Conductor Material:	Aluminum/copper
Sheath:	PVC	Armour:	SWA
Standard:	IEC Standard	Type:	Medium Voltage
Highlight:	XLPE Insulation MV Underground Cable , IEC Standard MV Underground Cable , PVC 30kV Medium Voltage Wire

CU/XLPE/SWA/PVC Medium Voltage Cable 18/30kV IEC Standard Underground Cable

Application

The cables are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground as well as for installation on cable trays for industries, switchboards and power stations

Construction

Conductor:Class 2 Aluminium/Copper circular, stranded
Conductor Screen:Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation :XLPE (Cross-Linked Polyethylene)
Insulation Screen :Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen :Copper wire screen
Tape Plastic tape is applied over the screen
Filler Extruded polymeric material
Bedding PVC (Polyvinyl Chloride)
Armour :STA (Galvanized Steel Tape Armoured)
Sheath :Extruded PVC (Polyvinyl Chloride) type ST2


Product parameters for Three cores18/30kV (19/33kV) product parameters for three cores aluminium tape armored

			Specification

			Outer diameter

			Approx. outer diameter of cable

			Approx. weight of cable

			Max. D.C. resistance of conductor at 20℃

			mm2

			mm

			mm

			kg/km

			Ω/km

			Cu

			Al

			Cu

			Al

			3×25

			6

			67.2

			5274.6

			4808.3

			0.727

			1.2

			3×35

			7

			69.6

			5854

			5201.1

			0.524

			0.868

			3×50

			8.4

			72.9

			6640.8

			5708.1

			0.387

			0.641

			3×70

			10

			76.6

			7532.4

			6226.7

			0.268

			0.443

			3×95

			11.5

			81.6

			9513.2

			7741

			0.193

			0.32

			3×120

			13

			85.2

			10655.6

			8417.1

			0.153

			0.253

			3×150

			14.5

			88.8

			11940.4

			9142.3

			0.124

			0.206

			3×185

			16.2

			92.8

			13416.5

			9965.6

			0.0991

			0.164

			3×240

			18.4

			97.9

			15508.4

			11031.5

			0.0754

			0.125

			3×300

			20.5

			103

			17793.4

			12197.2

			0.0601

			0.1

			3×400

			23.5

			110.2

			21438

			13976.5

			0.047

			0.0778

			3×500

			26.5

			118.9

			25252

			16101

			0.0366

			0.0605
