Single Copper Core Medium Voltage Cable AWA Armored 21KV 35kV XLPE PVC MV Cable

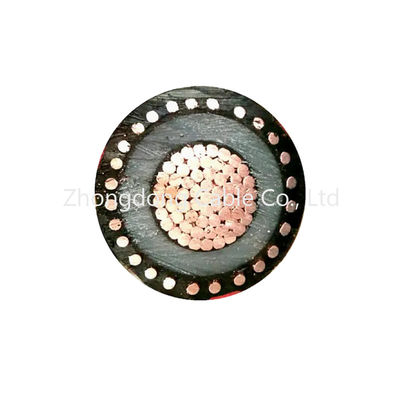

Large Image : Single Copper Core Medium Voltage Cable AWA Armored 21KV 35kV XLPE PVC MV Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,CE,IEC,TUV
Model Number:	YJV32

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Single Copper Core Medium Voltage Cable AWA Armored 21KV 35kV XLPE PVC MV Cable

Description

Insulation Material:	Xlpe	Conductor Material:	Aluminum/copper
Sheath:	PVC	Armour:	SWA
Standard:	IEC Standard	Type:	Medium Voltage
Highlight:	Single Copper Core Medium Voltage Cable , AWA Armored Medium Voltage Cable AWA , AWA Armored 35kV MV Cable

Single Copper Core Medium Voltage Cable SWA Armored 21/35kV XLPE/PVC

Application

Designed for excellence in functionality, this product is ideal for power transmission and distribution, effortlessly handling rated power frequency voltages from an impressive range of 3.6/6kv to 26/35kv.

Construction

Conductor:Class 2 Aluminium/Copper circular, stranded
Conductor Screen:Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation :XLPE (Cross-Linked Polyethylene)
Insulation Screen :Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen :Copper wire screen
Tape Plastic tape is applied over the screen
Filler Extruded polymeric material
Bedding PVC (Polyvinyl Chloride)
Armour :STA (Galvanized Steel Tape Armoured)
Sheath :Extruded PVC (Polyvinyl Chloride) type ST2


Product parameters for Three cores21/35kV product parameters for one core aluminium wire armored

			Specification

			Outer diameter

			Approx. outer diameter of cable

			Approx. weight of cable

			Max. D.C. resistance of conductor at 20℃

			mm2

			mm

			mm

			kg/km

			Ω/km

			Cu

			Al

			Cu

			Al

			1×50

			8.4

			39.4

			2331

			2116

			0.387

			0.641

			1×70

			10

			41

			2680

			2325

			0.268

			0.443

			1×95

			11.5

			43.8

			2981

			2482

			0.193

			0.32

			1×120

			13

			45.8

			3487

			2867

			0.153

			0.253

			1×150

			14.5

			46.8

			3870

			3055

			0.124

			0.206

			1×185

			16.2

			49.1

			4420

			3370

			0.0991

			0.164

			1×240

			18.4

			51.1

			4981

			3676

			0.0754

			0.125

			1×300

			20.5

			53.2

			5661

			3971

			0.0601

			0.1

			1×400

			23.5

			56.3

			6865

			4550

			0.047

			0.0778

			1×500

			26.5

			60.5

			8370

			5367

			0.0366

			0.0605

			1×630

			30

			64.4

			10067

			6178

			0.0283

			0.0469
