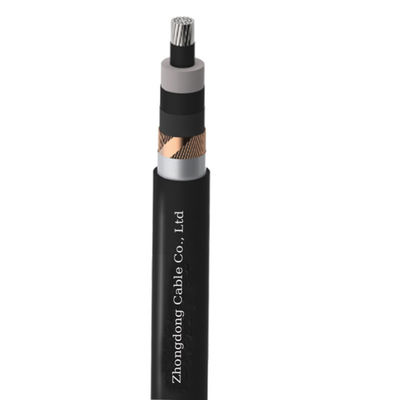

16 25 35 50 70 95 120mm Medium Voltage Cable Single Core 35kv MV Cable PVC sheathed

Large Image : 16 25 35 50 70 95 120mm Medium Voltage Cable Single Core 35kv MV Cable PVC sheathed

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,VDE,TUV
Model Number:	Medium Voltage

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10Work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

16 25 35 50 70 95 120mm Medium Voltage Cable Single Core 35kv MV Cable PVC sheathed

Description

Conductor Material:	Copper	Insulation Material:	XLPE
Jacket:	PVC	Cores:	3 Cores
Screen:	Copper Wire	Rated Voltage:	35 KV
Highlight:	120mm Medium Voltage Cable , Single Core 35kv MV Cable

16 25 35 50 70 95 120mm Medium Voltage Cable Single Core CU/XLPE/PVC

Construction

Stranded compacted conductor, triple extruded conductor screen, insulation and insulation screen, copper wire screened, laid-up, PVC bedded, steel wire armoured, PVC sheathed.

Application

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Feature

The product is suitable for power transmission and distribution lines with rated power frequency voltage 6kV～35 kV.
The ambient temperature for installation:≥0℃
Maximum conductor temperature in normal operation:≤90℃
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃
Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD.

Products Range

General type	VDE type	Description	Application
CU/XLPE/PVC (AL/XLPE/PVC)	N2XSY N2XSEY (NA2XSY NA2XSEY)	Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.
CU/XLPE/PE (AL/XLPE/PE)	N2XS2Y N2XSE2Y (NA2XS2Y NA2XSE2Y)	Cu conductor(Al conductor)XLPE insulated PE sheathed power cable
CU/XLPE/STA/PVC (AL/XLPE/STA/PVC)	N2XSBY N2XSEBY (NA2XSBY NA2XSEBY)	Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
CU/XLPE/STA/PE (AL/XLPE/STA/PE)	N2XSB2Y N2XSEB2Y (NA2XSB2Y NA2XSEB2Y)	Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC)	N2XSBY N2XSEBY (NA2XSBY NA2XSEBY)	Cu conductor(Al conductor)XLPE insulated double of aluminium-tape armored PVC sheathed power cable
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC)	N2XSRY N2XSERY (NA2XSRY NA2XSERY)	Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force
CU/XLPE/SWA/PE (AL/XLPE/SWA/PE)	N2XSR2Y N2XSER2Y (NA2XSR2Y NA2XSER2Y)	Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC)	N2XSRY N2XSERY (NA2XSRY NA2XSERY)	Cu conductor(Al conductor)XLPE insulated aluminium-wire armored PE sheathed power cable

packaging

FAQ

1. The time you can get the quotation after the sending the inquiry
In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.
2. For Sample
We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.
3.Payment
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight
4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
