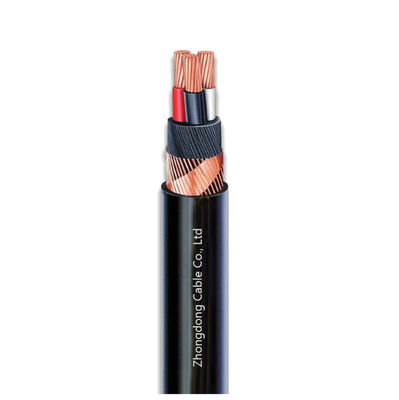

IEC60502-1 Standard Low Voltage Cable CU XLPE PVC STA Armoured Power Cable

IEC60502-1 Standard Low Voltage Cable CU XLPE PVC STA Armoured Power Cable
IEC60502-1 Standard Low Voltage Cable CU XLPE PVC STA Armoured Power Cable
IEC60502-1 Standard Low Voltage Cable CU XLPE PVC STA Armoured Power Cable IEC60502-1 Standard Low Voltage Cable CU XLPE PVC STA Armoured Power Cable

Large Image :  IEC60502-1 Standard Low Voltage Cable CU XLPE PVC STA Armoured Power Cable

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: NYBY NAYBY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

IEC60502-1 Standard Low Voltage Cable CU XLPE PVC STA Armoured Power Cable

Description
Voltage: 3.6/6kV Insulation: XLPE
Jacket: PVC Feature: LSZH
Amour: Steel Tape Application: Underground, Overhead, Indoor, Mining And Power Distribution Etc
Highlight:

IEC60502-1 Standard Low Voltage Cable

,

Low Voltage Armoured Power Cable

IEC60502-1 Standard Low Voltage Cable CU/XLPE/PVC/STA Armoured



Application


For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.



Construction


  1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation:XLPE
  3. Filler:  Non-hygroscopic material
  4. Binder tape:: Non-hygroscopic material
  5. Sheath  PVC


Characteristics

  1. Test Voltage: 3.5kV 5min No Breakdown
  2. The ambient temperature for installation: ≥0℃.
  3. Maximum conductor temperature in normal operation:≤90℃.
  4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
  5. Permissible minimum bending radius:
  6. Single unarmoured cable: 20 x OD
  7. Multi-core unarmoured cable: 15 x OD
  8. Single armoured cable: 5 x OD
  9. Multi-core armoured cable: 12 x OD
  10. Note : OD=Overall Diameter of Cable



Specification


General type

VDE type

Description

Application

CU/XLPE/PVC                               (AL/ XLPE /PVC)

N2XY(NA2XY)

Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable

Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.

CU/PVC/PE                                                (AL/ XLPE /PE)

N2X2Y(NA2X2Y)

Cu conductor(Al conductor)XLPE insulated PE sheathed power cable

CU/ XLPE /STA/PVC (AL/XLPE/STA/PVC)

N2XBY(NA2XBY)

Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.

CU/XLPE/STA/PE (AL/XLPE/STA/PE)

N2XB2Y(NA2XB2Y)

Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable

CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC)

N2XBY(NA2XBY)

Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PVC sheathed power cable

CU/XLPE/ATA/PE (AL/XLPE/ATA/PE)

N2XB2Y(NA2XB2Y)

Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PE sheathed power cable

CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC)

N2XRY(NA2XRY)

Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force

CU/XLPE/SWA/PE (AL/PVC/SWA/PE)

N2XR2Y(NA2XR2Y)

Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable

CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC)

N2XRY(NA2XRY)

Cu conductor(Al conductor)XLPE insulated  aluminum-wire armored PVC sheathed power cable

CU/XLPE/AWA/PE (AL/XLPE/AWA/PE)

N2XR2Y(NA2XR2Y)

Cu conductor(Al conductor)XLPE insulated  aluminum-wire armored PE sheathed power cable



FAQ


Q1: Are you trading company or manufacturer ?
A1: We are manufacturer and trading company.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?

A4: We are looking for distributor and agent all over the world.
