Copper Wire Shielded PVC Power Cable Steel Tape Armoured Single Core STA Cable

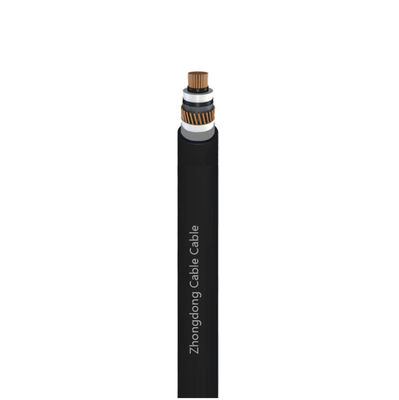

Large Image : Copper Wire Shielded PVC Power Cable Steel Tape Armoured Single Core STA Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO,TUV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Copper Wire Shielded PVC Power Cable Steel Tape Armoured Single Core STA Cable

Description

Armored:	Steel Tape Armour	Sheath Material:	PVC
Insulation:	PVC	Rated Voltage:	8.7/15kV
Shield:	Copper Wire	Conductor:	Copper
Highlight:	Copper Wire Shielded PVC Power Cable , PVC Single Core STA Cable

Copper Wire Shielded PVC Insulated Power Steel Tape Armoured Single Core STA Cable

Application

Copper Wire Shielded PVC Insulated cables combine copper braid/screen shielding (for EMI/RFI suppression) with PVC/XLPE insulation, offering durability, flexibility, and compliance with standards like IEC 60502 or BS 5467. They are ideal for low-voltage power distribution, control circuits, and instrumentation in EMI-prone or safety-critical environment

‌

Construction

Conductor: Circular compacted stranded Copper or aluminium
Conductor screen: Extruded semi-conductive compound
Insulation: PVC
Insulation screen: Extruded semi-conductive compound
Metallic screen: Copper Wire
Binder tape: non-hygroscopic material
Inner covering(bedding): PVC
Metallic armor: Galvanized steel tape

Specification

Spec mm²	Conductor diameter mm	Thickness of Insulation mm	Outer diameter of Insulation ±1.0mm	Thickness of Jacket mm	Approximate outer diameter mm	Weight kg/km
1×25	6.0	4.5	17.0	1.6	23.0	703
1×35	7.0	4.5	18.0	1.7	24.2	832
1×50	8.2	4.5	19.2	1.7	25.4	977
1×70	10.0	4.5	20.8	1.8	27.2	1228
1×95	11.6	4.5	22.6	1.8	29.0	1519
1×120	13.0	4.5	24.0	1.9	30.6	1799
1×150	14.4	4.5	25.4	1.9	32.0	2093
1×185	16.1	4.5	27.2	2.0	34.0	2485
1×240	18.4	4.5	29.4	2.1	36.4	3076
1×300	20.6	4.5	31.6	2.1	38.6	3693
1×400	23.4	4.5	34.4	2.2	41.6	4566
1×500	26.6	4.5	38.4	2.3	46.2	5749
1×630	30.0	4.5	41.8	2.4	49.8	7135
1×800	34.0	4.5	45.8	2.6	54.2	8912

Copper Wire Shielded PVC Power Cable Steel Tape Armoured Single Core STA Cable 0
