Copper Core Halogen Free Solar PV Cable H1Z2Z2-K Single Core UV Resistant

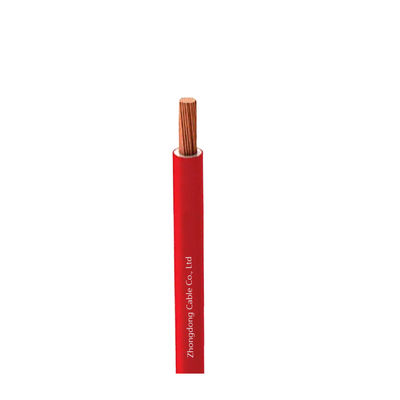

Large Image : Copper Core Halogen Free Solar PV Cable H1Z2Z2-K Single Core UV Resistant

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	TUV,ISO
Model Number:	HIZ2Z2-K

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Steel wooden drum, Coil In Foil / Drum
Delivery Time:	10DAYS
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Copper Core Halogen Free Solar PV Cable H1Z2Z2-K Single Core UV Resistant

Description

Conductor:

Tinned Copper

Test Voltage:

6.5kV AC

Temperature Rating:

Fixed: -40°C To +90°C

Core:

1 Core/2 Core

Highlight:

Solar PV Cable H1Z2Z2-k

Single Core Solar PV Cable

Copper Core Halogen Free Solar Cable PV Cable H1Z2Z2-k Single Core

Application

Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.

Constrcution

Conductor: Tinned copper, electrical property & Structure in accordance with EN60228 Class 5.
Insulation: LSZH electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer’s request.
Outer Sheath: LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer’s request.

Specification

Cable structure parameters

Cross section(mm²)	Conductor Construction(no/mm)	Conductor Stranded OD.max(mm)	Cable OD.(mm)	Approximate weight of cable kg/km	Max Cond Resistance(Ω/km,20°C)
1×1.5	48/0.20	1.58	4.8	35	13.7
1×2.5	77/0.20	2.02	5.2	47	8.21
1×4	56/0.285	2.46	5.7	64	5.09
1×6	84/0.285	3.01	6.3	86	3.39
1×10	77/0.40	4.1	7.2	128	1.95
1×16	7×17/0.40	5.5	8.9	196	1.24
1×25	7×27/0.40	6.7	10.7	299	0.795
1×35	7×38/0.40	8.2	12.4	407	0.565
1×50	19×20/0.40	10.0	14.6	571	0.393
1×70	19×28/0.40	11.6	16.4	773	0.277
1×95	19×38/0.40	13.5	18.5	1024	0.210
1×120	24×38/0.40	14.4	19.8	1266	0.164
1×150	30×38/0.40	16.2	22.2	1584	0.132
1×185	37×38/0.40	18.2	25.0	1967	0.108
1×240	48×38/0.40	20.6	27.8	2518	0.0817

Copper Core Halogen Free Solar PV Cable H1Z2Z2-K Single Core UV Resistant 0
