Halogen Free Photovoltaic Solar Cable AC 1.0kV DC 1.5kV Solar Panel PV Cable

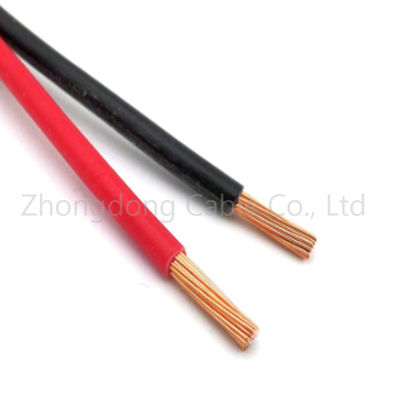

Large Image : Halogen Free Photovoltaic Solar Cable AC 1.0kV DC 1.5kV Solar Panel PV Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO
Model Number:	PV1-F

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	woodern drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	500KM/Week

Contact Now

Halogen Free Photovoltaic Solar Cable AC 1.0kV DC 1.5kV Solar Panel PV Cable

Description

Insulation Material:	Xlpe	Jacket:	XLPO
Conductor Material:	Class 5 Tinned Copper	Nominal Voltage:	DC 1.0KV AC 0.6/1.0KV
Core:	1 Core	Colour:	Black /Other Colours Available On Request
Highlight:	Halogen Free Photovoltaic Solar Cable , Solar Panel PV Cable Halogen Free

Solar Cable Halogen Free Photovoltaic Cable AC 1.0/1.0kV DC 1.5kV for Solar Panel

Characteristic

Duarable Insulation and very nice waterproof quality (IP67) enable for all kinds of wwather.
Inner Conductor: Flexible Tinned Copper Wire
Dielectric: LSZH Halogen free Copolymer (UV resistant)
One side with Male Solar Connector, and the others comes with Female Solar Connectors, with Waterproof IP67
Colored Cable (RED +Black) easy for use, avoid any mixed connected and short circuit.

Structure

Conductor: Tinned copper, offering excellent conductivity and corrosion resistance.
Insulation: Cross-linked polyethylene (XLPO) or similar material, providing high thermal and mechanical resistance.
Sheath: Halogen-free, flame-retardant material, ensuring safety and environmental compliance.

Applications

Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.

Parameter

Cross section(mm²)	Conductor Construction(no/mm)	Conductor Stranded OD.max(mm)	Cable OD.(mm)	Approximate weight of cable kg/km	Max Cond Resistance(Ω/km,20°C)
1×1.5	48/0.20	1.58	4.8	35	13.7
1×2.5	77/0.20	2.02	5.2	47	8.21
1×4	56/0.285	2.46	5.7	64	5.09
1×6	84/0.285	3.01	6.3	86	3.39
1×10	77/0.40	4.1	7.2	128	1.95
1×16	7×17/0.40	5.5	8.9	196	1.24
1×25	7×27/0.40	6.7	10.7	299	0.795
1×35	7×38/0.40	8.2	12.4	407	0.565
1×50	19×20/0.40	10.0	14.6	571	0.393
1×70	19×28/0.40	11.6	16.4	773	0.277
1×95	19×38/0.40	13.5	18.5	1024	0.210
1×120	24×38/0.40	14.4	19.8	1266	0.164
1×150	30×38/0.40	16.2	22.2	1584	0.132
1×185	37×38/0.40	18.2	25.0	1967	0.108
1×240	48×38/0.40	20.6	27.8	2518	0.0817
