Aluminium Alloy Conductor Medium Voltage Cable 26KV 35kV XLPE / STA / PVC Insulation

Large Image : Aluminium Alloy Conductor Medium Voltage Cable 26KV 35kV XLPE / STA / PVC Insulation

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Aluminium Alloy Conductor Medium Voltage Cable 26KV 35kV XLPE / STA / PVC Insulation

Description

Insulation:	XLPE HPDE	Voltage:	18/30kV
Length:	Customized	Conductor Material:	Copper
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead
Highlight:	Medium Voltage Cable 26KV , Alloy Conductor Medium Voltage Cable , 35kV XLPE Medium Voltage Cable

Aluminium Alloy Conductor Medium Voltage Cable 26/35kV XLPE/ STA/ PVC

Application

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Construction

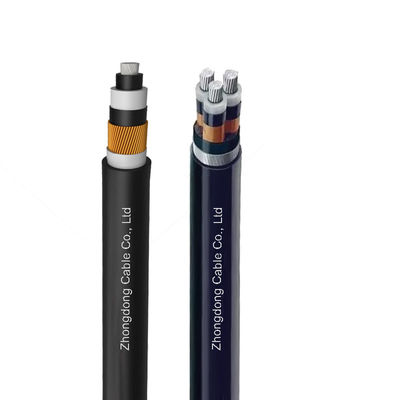

Aluminium Alloy Conductor Medium Voltage Cable 26KV 35kV XLPE / STA / PVC Insulation 0

Conductor
Conductor Shiel
Insulation
Metal Shield Layer
Filler
Binder Tape
Armouring
Outer sheath

Laying Method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

Specification

KYJLH(S)V62 YJLH(S)V22-26/35kV Cable Structure Parameters

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km	Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
1×50	7.6±0.2	31.2	41.2	2192	3×50	7.6±0.2	31.2	833	7350
1×70	9.2±0.2	32.8	43.0	2376	3×70	9.2±0.2	32.8	86.9	7989
1×95	10.9±0.2	34.5	44.7	2554	3×95	10.9±0.2	34.5	903	8633
1×120	12.2±0.2	35.8	46.1	2738	3×120	12.2±0.2	35.8	93.6	9314
1×150	13.6±0.2	37.2	47.7	2939	3×150	13.6±0.2	37.2	96.8	10003
1×185	15.2±0.2	38.8	49.5	3182	3×185	15.2±0.2	38.8	100.6	10803
1×240	17.4±0.2	41.0	51.7	3493	3×240	17.4±0.2	41.0	105.8	11996
1×300	19.5±0.2	43.1	54.1	3855	3×300	19.5±0.2	43.1	110.4	13154
1×400	22.0±0.2	45.6	56.8	4349	3×400	22.0±0.2	45.6	117.8	14927
1×500/35	24.8±0.2	49.2	63.1	5275	3×500/35	24.8±0.2	49.2	129.7	18186
1×630/35	28.2±0.2	52.6	66.9	5949	3×630/35	28.2±0.2	52.6	137.8	20526
1×800/35	34.0±0.2	58.4	72.8	6872
