XLPE Insulated Medium Voltage Power Cables With Aluminium Alloy Conductor

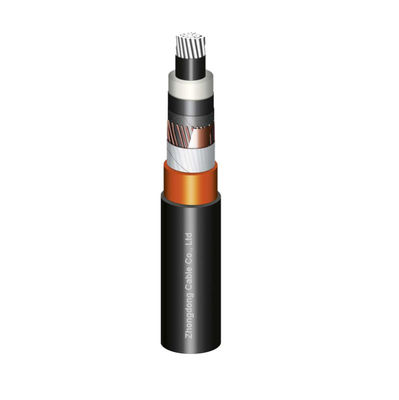

Large Image : XLPE Insulated Medium Voltage Power Cables With Aluminium Alloy Conductor

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

XLPE Insulated Medium Voltage Power Cables With Aluminium Alloy Conductor

Description

Insulation:	XLPE HPDE	Voltage:	12/20kV
Conductor Material:	Aluminium Alloy Conductor	Application:	Overhead Or Underground,Pipe Laying, Trench Laying, Tunnel Laying, Vertical Shaft And Bridge Laying
Shield:	Copper Wire Or Copper Tape	No Of Core:	Single Core
Highlight:	Aluminium Alloy Conductor XLPE Cables , XLPE Medium Voltage Power Cables

Aluminium Alloy Conductor XLPE Insulated Power Cable Copper Wire Shield XLPE/PVC/STA Medium Voltage

Application

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Construction

XLPE Insulated Medium Voltage Power Cables With Aluminium Alloy Conductor 0

Conductor
Conductor Shield
Insulation
Metal Shield Layer
Filler
Binder Tape
Armouring
Outer sheath

Laying Method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

Specification

12/20kV Single Core Cable Structure Parameters

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
1×35	6.6±0.2	20.0	27.8	965
1×50	7.6±0.2	21.0	28.8	1066
1×70	9.2±0.2	22.6	30.6	1203
1×95	10.9±0.2	24.3	32.3	1340
1×120	12.2±0.2	25.6	33.8	1483
1×150	13.6±0.2	27.0	36.5	1955
1×185	15.2±0.2	28.6	38.2	2164
1×240	17.4±0.2	30.8	40.6	2455
1×300	19.5±0.2	32.9	43.1	2773
1×400	220±0.2	35.4	45.7	3217
1×500	24.8±0.2	39.0	49.7	3750
1×630	282±0.2	42.4	53.4	4360
1×800	34.0±0.2	48.2	59.4	5192

XLPE Insulated Medium Voltage Power Cables With Aluminium Alloy Conductor 1

Factory

XLPE Insulated Medium Voltage Power Cables With Aluminium Alloy Conductor 4
