35kV MV XLPE Electrical Cable Copper Wire Shield 3 Core Customized Length

Name: 35kV MV XLPE Electrical Cable Copper Wire Shield 3 Core Customized Length
Brand: Zhongdong Cable Co., Ltd.
Availability: InStock

All Products

Low Voltage Cable
(24)

Medium Voltage Cable
(24)

High Voltage Cable
(14)

Bare Conductor
(20)

Aerial Bundled Cable ABC
(24)

Aluminium Conductor Cable
(27)

Armoured Electrical Cable
(20)

XLPE Insulated Power Cable
(19)

PVC Insulated Power Cable
(16)

Solar Cable
(16)

Electrical Wire
(11)

Rubber Cable
(10)

Control Cable
(11)

Shielded Instrument Cable
(10)

Low Smoke Zero Halogen Cable
(12)

Fire Resistant Cable
(9)

Prefabricated Branch Cable
(6)

I'm Online Chat Now

35kV MV XLPE Electrical Cable Copper Wire Shield 3 Core Customized Length

Large Image : 35kV MV XLPE Electrical Cable Copper Wire Shield 3 Core Customized Length

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

35kV MV XLPE Electrical Cable Copper Wire Shield 3 Core Customized Length

Description

Insulation:	XLPE HPDE	Voltage:	26/35kV
Length:	Customized	Conductor Material:	Aluminium Alloy Conductor
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead
Highlight:	MV XLPE Electrical Cable Copper , Customized Length XLPE Electrical Cable , 35kV 3 Core XLPE Cable

35kV MV XLPE Insulated Power Cable Copper Wire Shield XLPE/PVC/STA AA-8000 Series

Application

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Construction

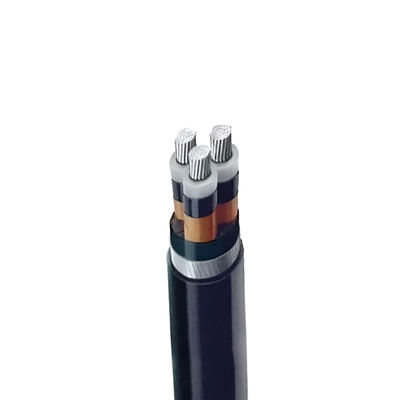

35kV MV XLPE Electrical Cable Copper Wire Shield 3 Core Customized Length 0

1. Conductor

Round compacted conductors

2. Conductor Shield

Semi conductive shielding material (below 500mm2

Semi conductive tape+semi conductive shielding material (500mm2 and above)

3. Insulation

Polyvinyl chloride (PVC)

4. Insulation Shield

Peelable semiconducting shielding material

5. Metal Shield Layer

Copper Tape

Copper Wire(35kV 500mm2 above)

6. Filler

Polypropylene(PP) mesh filling rope

7. Binder Tape

Non hygroscopic straps

8. Armouring

Steel Tape(Single core)

Galvanized steel tape(3 core)

9. Outer sheath

90℃ Polyvinyl chloride (PVC)

Laying Method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

Specification

26/35kV Three Core Cable Structure Parameters

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
3×50	7.6±0.2	31.2	833	7350
3×70	9.2±0.2	32.8	86.9	7989
3×95	10.9±0.2	34.5	903	8633
3×120	12.2±0.2	35.8	93.6	9314
3×150	13.6±0.2	37.2	96.8	10003
3×185	15.2±0.2	38.8	100.6	10803
3×240	17.4±0.2	41.0	105.8	11996
3×300	19.5±0.2	43.1	110.4	13154
3×400	22.0±0.2	45.6	117.8	14927
3×500/35	24.8±0.2	49.2	129.7	18186
3×630/35	28.2±0.2	52.6	137.8	20526
