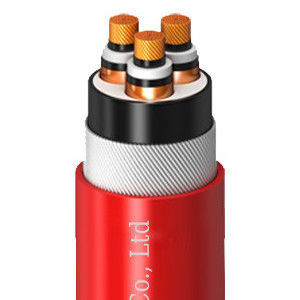

26/35kV Underground XLPE Insulated PVC Sheathed Cable With Metal Tape Armouring

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×50

7.6±0.2

312

40.6

2435

3×50

7.6±0.2

31.2

81.8

8065

1×70

9.2±0.2

32.8

42.4

2754

3×70

9.2±0.2

32.8

85.6

9116

1×95

10.9±0.2

345

44.1

3108

3×95

10.9±0.2

34.5

89.5

10298

1×120

12.2±0.2

35.8

45.5

3438

3×120

12.2±0.2

35.8

92.8

11418

1×150

13.6±0.2

372

47.1

3805

3×150

13.6±0.2

37.2

96.2

12614

1×185

15.2±0.2

38.8

48.9

4266

3×185

15.2±0.2

38.8

99.8

14066

1×240

17.4±0.2

410

51.1

4925

3×240

17.4±0.2

41.0

105.1

16311

1×300

19.5±0.2

43.1

53.5

5666

3×300

19.5±0.2

43.1

109.9

18616

1×400

22.0±0.2

45.6

56.2

6598

3×400

22.0±0.2

45.6

116.0

21704

1×500/35

24.8±0.2

492

62.5

8205

3×500/35

24.8±0.2

49.2

129.4

27029

1×630/35

28.2±0.2

52.6

66.3

9771

3×630/35

28.2±0.2

52.6

137.5

32059

1×800/35

34.0±0.2

58.4

72.2

11950
